Manufacturer warranty Description
Features:
- Gold plated contacts eliminate high resistance tarnishing
- Push"OFF" (Contacts are both open), Pull"ON" (Contacts are both closed)
- Nema 12/13, IP 65
The following switch is a hand operated, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment. The yellow cover, painted with a dry powder paint, is made from die-cast zinc. The red plastic mushroom plunger head is solid color throughout.

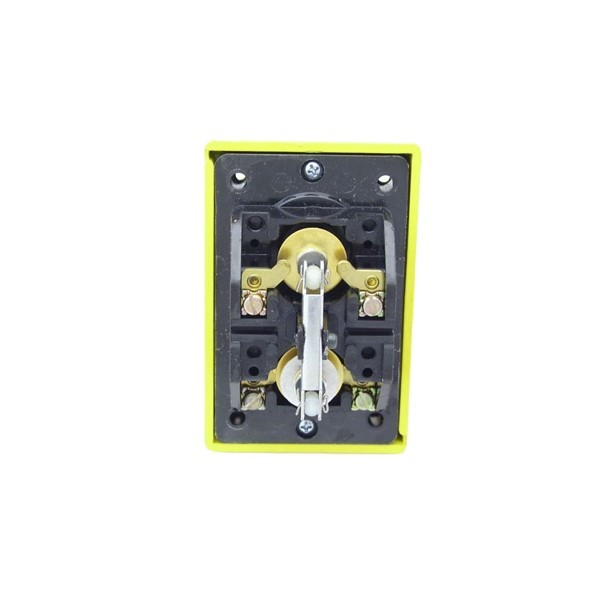

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation. The mechanical life of this device is 1,000,000 operations.
This switch can be found on a variety of machines in all types of applications. Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial or commercial environments.
Technical details
- Cover Color Yellow
- Contact Arrangement #07 NC + NC
- C 1.46"
- a 2.16"
- b 1.69"
- Operating Type Maintained
- Operating Force 10.0 lb
- Contact Type Slow-Make Slow-Break
- Plunger Color Red
