Roughness Tester Ra Rz Rq and Rt
Roughness Tester Ra Rz Rq and Rt
Roughness Tester Ra Rz Rq and Rt
Roughness Tester Ra Rz Rq and Rt
Roughness Tester Ra Rz Rq and Rt
PCE Instruments
Roughness Tester Ra Rz Rq and Rt
Roughness Tester Ra Rz Rq and Rt
Roughness Tester Ra Rz Rq and Rt
Roughness Tester Ra Rz Rq and Rt
Roughness Tester Ra Rz Rq and Rt

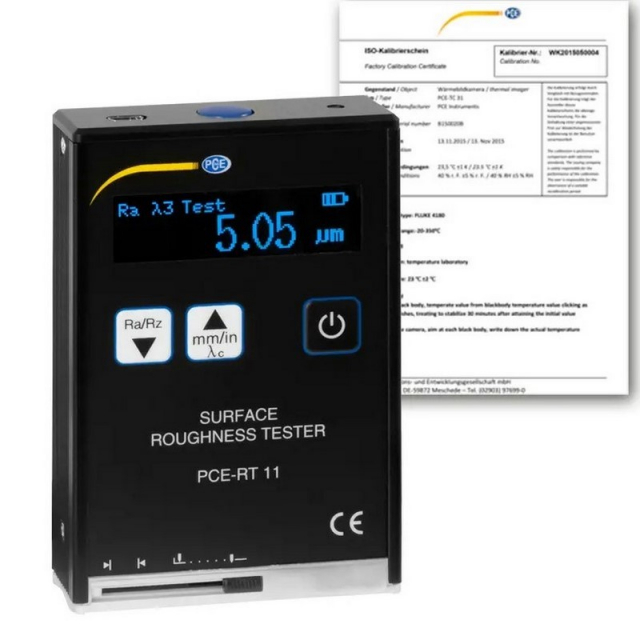

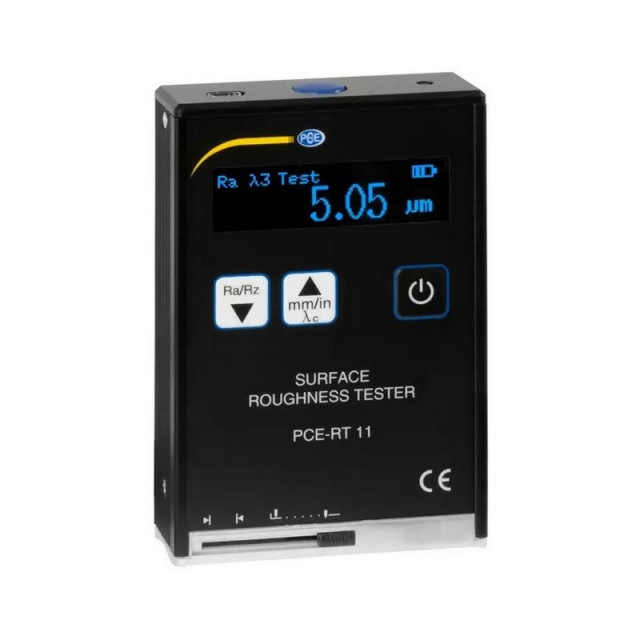

PCE Instruments PCE-RT 11-ICA Roughness Tester Ra Rz Rq and Rt

Part #:
PCE-RT 11-ICA
Condition:
Brand New

Choose Measurement Range

Contact Us For Pricing
Check availability
Contact Us For Pricing
Manufacturer warranty

Description

Contact Us For Pricing
Check availability

Technical details

Main features
  • Weight 200 g / < 1 lb
  • Power Supply 3.7 V Li-ion battery
  • Accuracy ± 15%
  • Probe Diameter 10 µm ± 1 µm tip radius
  • Measurement Range Ra / Rz / Rq / Rt
  • Ambient Temperature -20 - 40°C / -4 - 104°F
  • Humidity < 90 %
  • Dimension 106 x 70 x 24 mm / 4.2 x 2.8 x 1 in
  • Repeatability < 12%

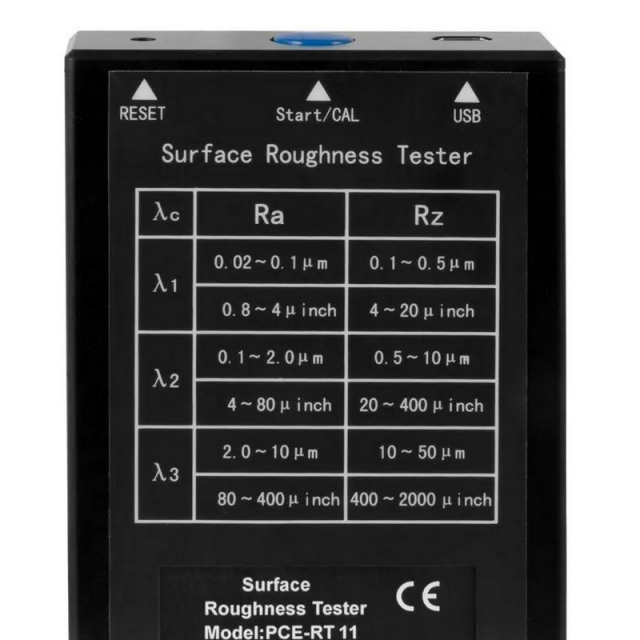

  • Roughness Parameters Ra, Rz, Rq, Rt
  • Measuring Area Rz, Rt 0.1 - 50 µm
  • Measuring Area Ra, Rq 0.05 - 10 µm
  • Cut-Off Length f0.25 mm, 0.8 mm, 2.5 mm
  • Scanning Path in Total 6 mm
  • Probing Speed 1 mm / s

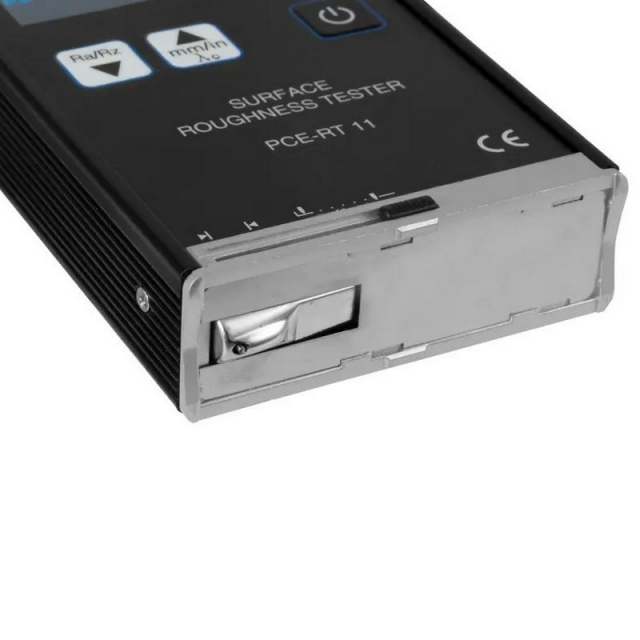

  • Probe System Piezoelectric probe
  • Inclination Angle OLED Display
  • Load-Time 3 hours
