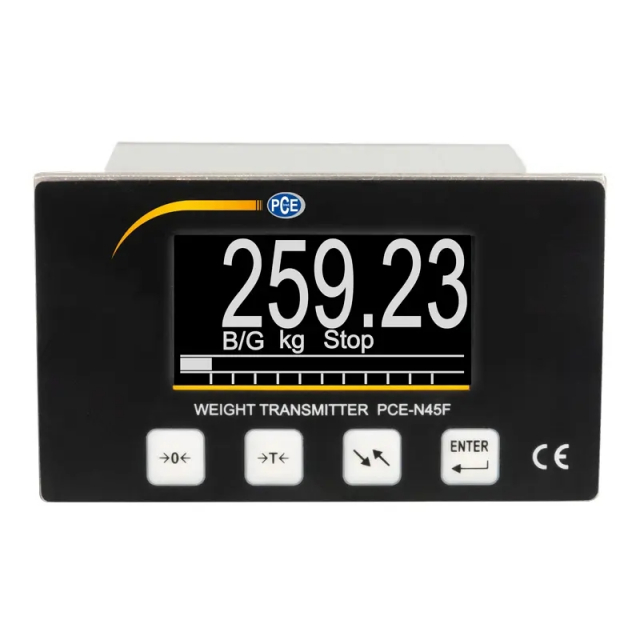

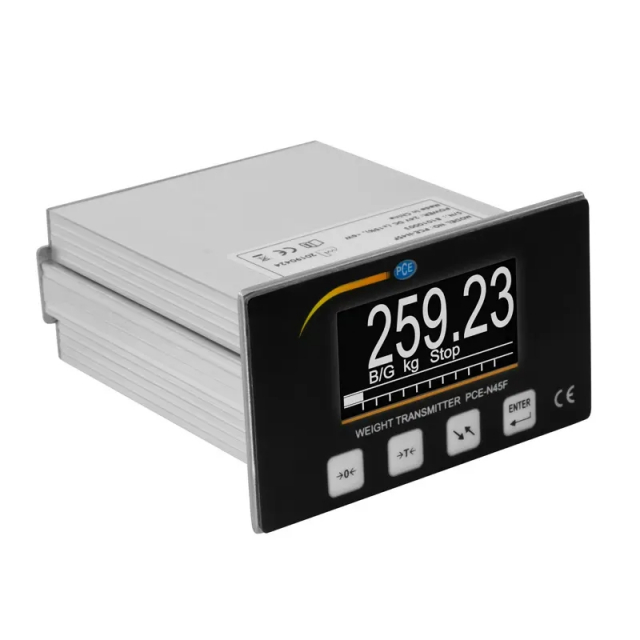

PCE Instruments PCE-N45F Weight Indicator with OLED Display

PCE-N45F Includes Only:

• 1 x Weight indicator PCE-N45F
• 1 x Sealing tape
• 1 x User manual

Features:

• Display for DMS
• mV / V input
• Relay output
• Potential-free digital input
• Interface and analog output

The weighing indicator is used to realize individual weighing solutions. Load cells, force sensors, weighing platforms and other sensors that use strain gauges can be connected to the weighing indicator. This makes the weighing indicator a versatile measuring instrument for weight, force, torque, etc. The weighing indicator has a measuring input to which the sensors can be connected in 4 or 6-wire technology. The menu can be used to perform an exact calibration / adjustment from the weighing indicator.

The weighing indicator has many rear connections. Thus, the 4 NO relays and the potential-free digital input are connected here on the weighing indicator. The outputs can be used to trigger different processes. The digital input is used to tare the weighing indicator or to set the display to 0. In addition to these functions, the weighing indicator can be deleted via the interface. The analogue output is used to pass on the displayed value directly from the weighing indicator.
