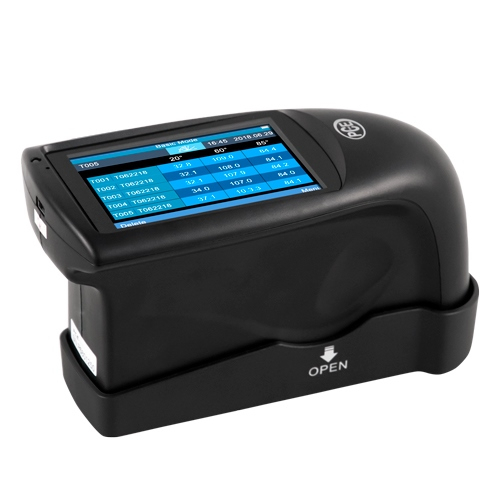

PCE Instruments PCE-IGM 100 Gloss Meter, 400-700 nm

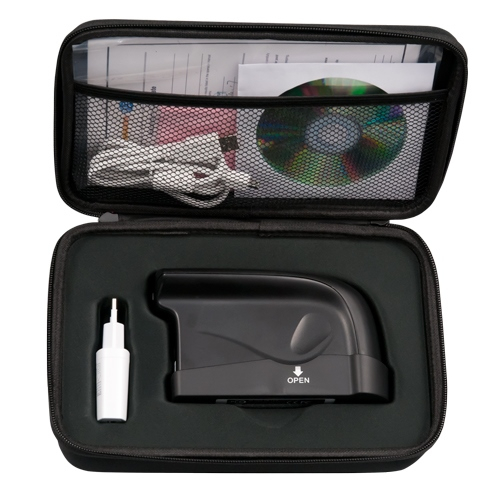

PCE-IGM 100 Includes Only:

• 1 x Glossmeter PCE-IGM 100
• 1 x Evaluation software (on CD-ROM)
• 1 x Charging adapter
• 1 x USB cable
• 1 x Calibration plate
• 1 x Instruction manual

Features:

• Different measuring geometries

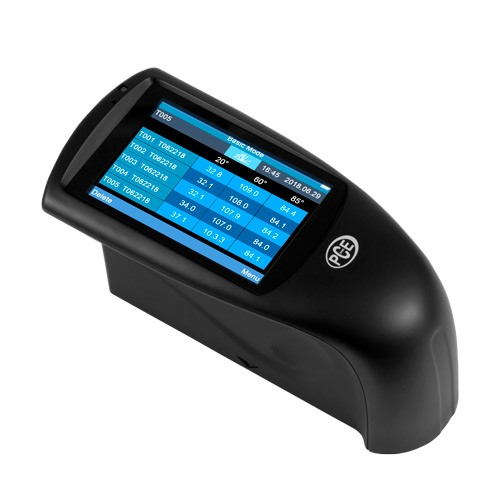

• 3.5" TFT
• Internal data memory
• Calibration plate supplied
• Fast measurement time
• With evaluation software
• Light source: D65
• Wave length: 400-700 nm

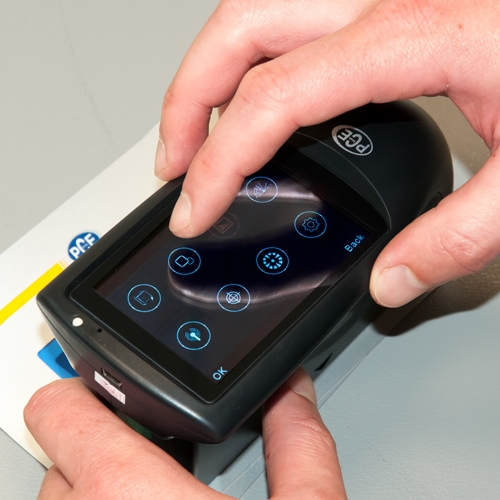

A gloss meter is a tester for determining surface gloss. Thereby, with the gloss meter, spectral reflections of a light beam that hits the surface, are measured. The touch screen allows for easy navigation. The gloss meter is applied especially in areas where it is important that the surfaces have the same structure, and thus have the same surface characteristics. This often happens in quality control. Thus, the gloss meter is a measuring instrument that can be used in many different companies. Included with this gloss meter there is also a CD-Rom with special evaluation software. So the measured data can be first stored on the device and later transferred to a computer. The software of the gloss meter also has an analysis function that serves for precise evaluation.
