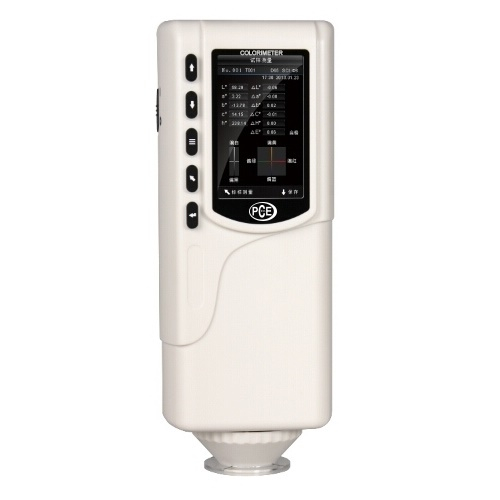

PCE Instruments PCE-CSM 5 Colorimeter for Quality Control
Brand NewChoose Aperture
Manufacturer warranty Description
PCE-CSM 5 Includes Only:
- 1 x Color meter PCE-CSM 5
- 1 x Lithium-ion battery
- 1 x Mains adapter
- 1 x Calibration plate (white)
- 1 x PC software
- 1 x Instruction manual
- 1 x aluminum carry case
Features:
- CIE LAB, XYZ, LCh, RGB, LUV
- White calibration
- Determination of reference values and samples
- Exchangeable measuring apertures
- Rechargeable lithium-ion battery
- Suitable for many different surfaces
- Easy to use
The colorimeter PCE-CSM 5 was developed for quality control and offers high accuracy. When using the colorimeter, you can choose between different color spaces (CIE LAB, XYZ, LCh, RGB, LUV). In addition, the colorimeter PCE-CSM 5 comes with two different measuring apertures (Dia. 6 mm and Dia.10 mm). After a measurement with the colorimeter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily. In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the colorimeter, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface.
Technical details
- Interface USB / RS-232
- Weight 500 g / 17.6 oz
- Dimensions 205 x 67 x 80 mm / 8 x 2.6 x 3.1 in
- Aperture Dia. 8 mm / Dia. 6 mm
- Sensor Silicon photoelectric diode
- Power Supply Rechargeable lithium-ion battery 3.7 V at 3,200 mAh
- Light Source D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12
- Display TFT 2.8" (16:9)
- Operating Temperature 0 - +40 °C / 32 - 104 °F
- Storage 100 reference values, 20,000 samples
- Battery Life approx. 5,000 measurements
- Repeatability Standard deviation within ΔE*ab 0.03 Average of 30 measurements of standard white plate
- Storing Temperature -20 - +50 °C / -4 - 122 °F
- Measuring Geometry 8°/d
- Measuring Aperture Ø 6 mm, Ø 8 mm (exchangeable)
- Color Spaces CIE LAB, XYZ, LCh, RGB, LUV
- Color Difference Formula ΔE*ab, ΔE( h) , ΔE*uv,ΔE*94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE*00
- Other Color Parameters WI ( E313， CIE, AATCC， Hunter)， YI ( D1925，313)， Color Fastness, Staining Fastness, J PC79， BFD( 1. 5: 1)， FMCII
- Observation Angle CIE 10°
- Data On Display colorimetric value color difference (value/graph) PASS/FAIL result color offset
- Measurement Time 0.4 s
- Error Between Equipment ΔE*ab 0. 2
- Lamp Life 5 years, more than 1.6 million measurements
