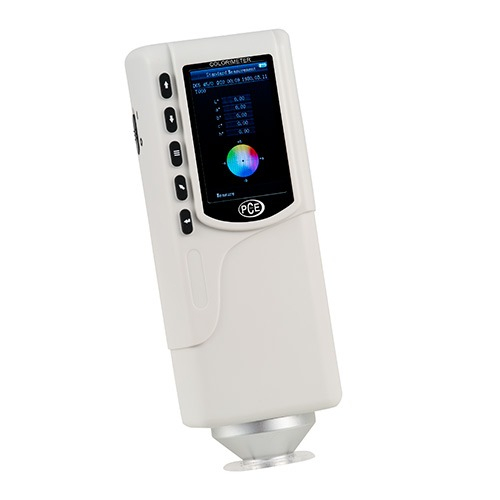

PCE Instruments PCE-CSM 4 Colorimeter, Food Industry

PCE-CSM 4 Includes Only:

• 1 x Colorimeter PCE-CSM 4
• 1 x USB cable
• 1 x battery
• 1 x AC Mains adapter
• 1 x Wrist band
• 1 x Standard calibration plate white
• 1 x Computer software
• 1 x Instruction manual
• 1 x Soft carry case

Features:

• Rechargeable Lithium-Ion battery
• Autom. calibration of black-and-white contrast
• Continuous performance
• Designed for the food industry
• Measures various colors
• Application on different surfaces
• Simplified user-interface

The Colorimeter proves to be a good multitasking device. It is designed to measure the color spectrum of various objects. Light consists of a broad spectrum of colors that are not always purely white, black, or blue. A light source illuminates an object, which then absorbs part of that light and reflects another one. That reflected light can be then detected by a sensor in order to determine the reflected wavelengths and thus calculate its color. Colorimeters are often applied in areas of quality control in industrial sectors. Colorimeters of the PCE-CSM series are applied especially in industries where the characteristics of colors play a big role. Whether it is dental technology, painting industries, or the production of plastic bags, the colorimeter PCE-CSM 4 is an ideal product for quality management and thus assures the highest reliability, whenever it is important to assure a certain standard in optic quality.

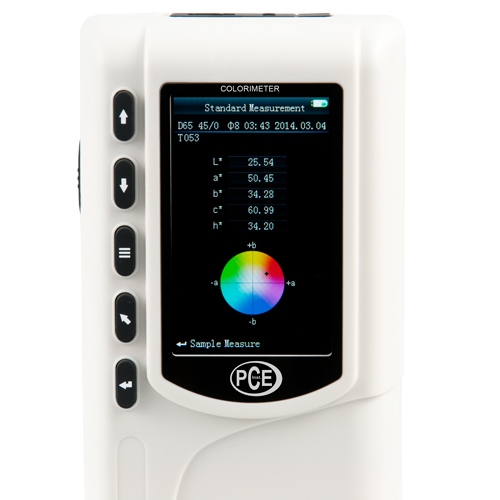

The colorimeter supports an ergonomic design and features user-friendly menu navigation. The colorimeter PCE-CSM 4 has a large measuring aperture of 20 mm. The supported color spaces of the colorimeter PCE-CSM 4 are CIELabCh, CIELab, and CIEXYZ. Thus the colorimeter is designed for application in professional industries. Another advantage of the colorimeter of the PCE-CSM series is that it supports a vertical justification. This means that the whole device does not need to be placed on the object for analysis, but only the part with the sensor in it. The industrial perspective of it is that this method allows the measuring of damp objects, textiles, and even food. The colorimeter PCE-CSM 4 is therefore ideally applied for measurements of e.g. meat, bananas, or tomatoes.

The Lab color space:
