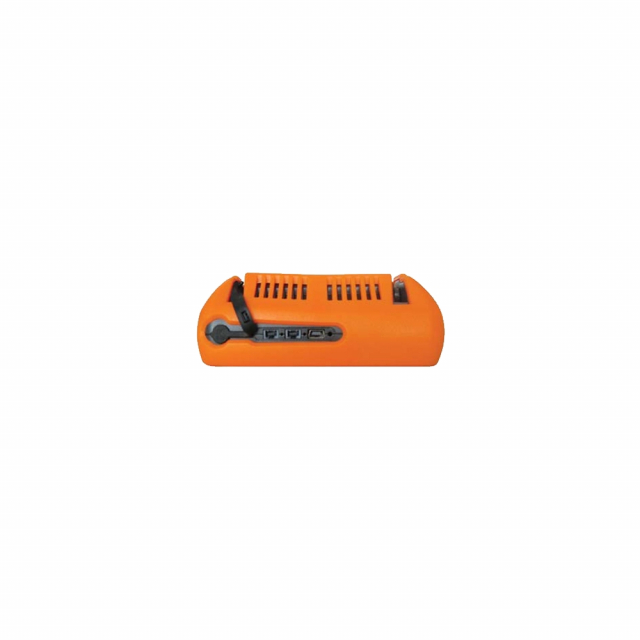

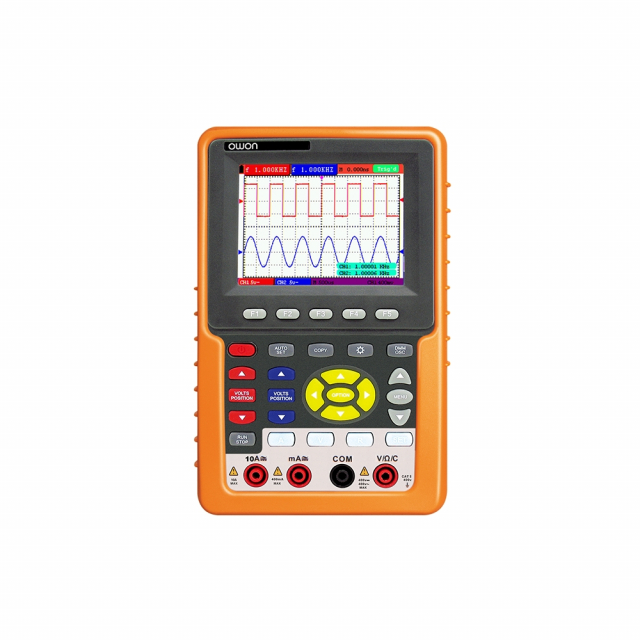

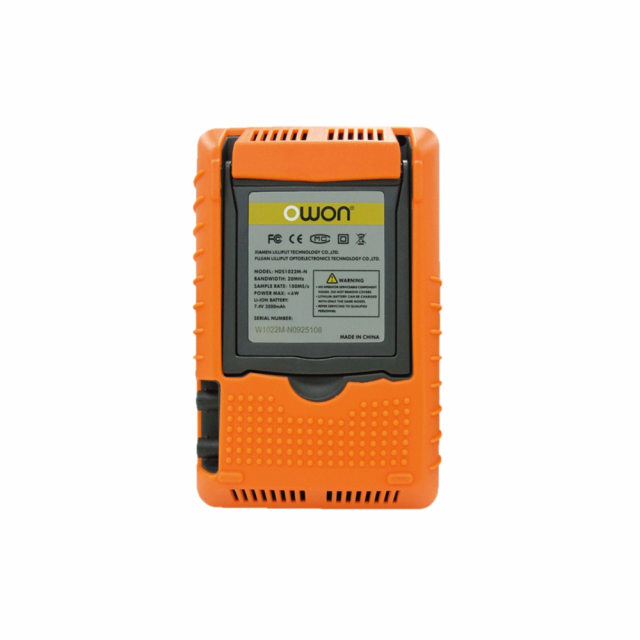

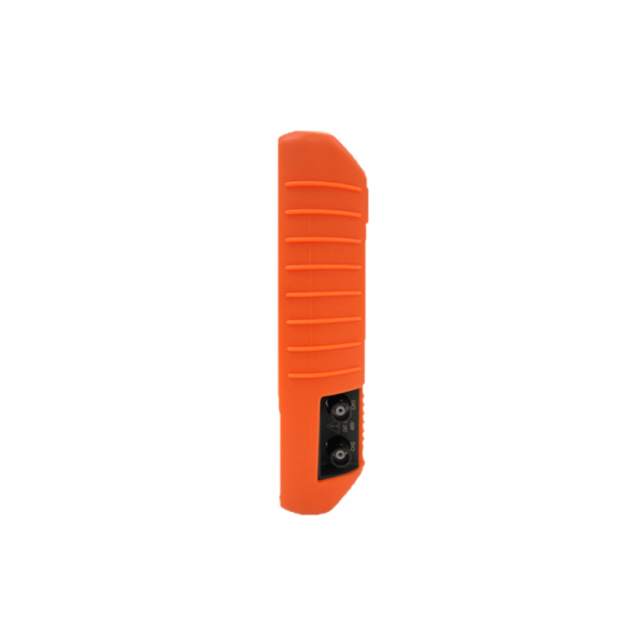

Features:

2 in 1 (DSO + Multimeter)
Auto-scale Function
FFT
20 group automatic measurement options
Bandwidth : 20MHz - 200MHz
USB data transmission supported
Multimeter supported SCPI
Rechargeable Li-ion battery (6 hours' backup)
Waveform record & restore

Application:

Electronic circuit debugging education and training
Circuit testing
Automobile maintenance and testing
Design and manufacture

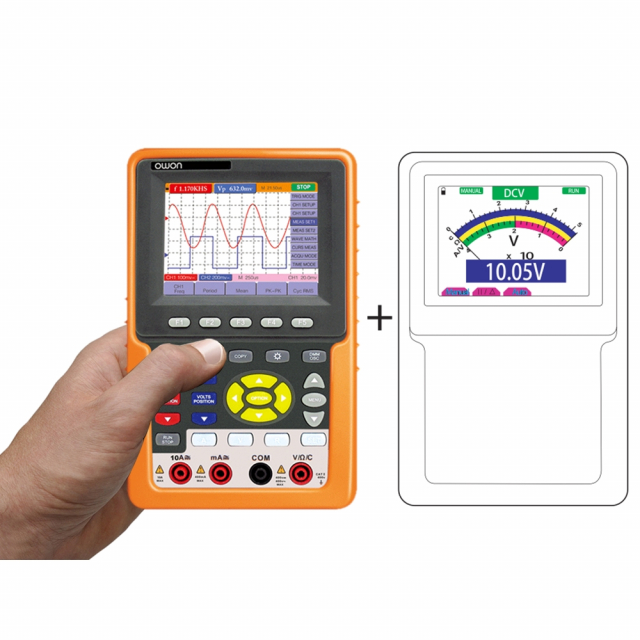

1. 2-in-1 station

Oscilloscope + 3-3/4 digits multimeter + FFT spectrum analyzer.

2 in 1 Station

2. Auto-scale Function

While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and timebase scale according to the type, amplitude and frequency of input signal.

Auto Scale Function

3. Trigger Sensitivity Adjustable

Original adjustable trigger sensitivity, greatly filter the overlay noise and trigger the signal stably under noise circumstance.

Trigger Sensitivity Adjustable

4. Alternative trigger function

OWON HDS digital oscilloscope alternative trigger function support 2 simultaneous signal test, improve working efficiency.

Alternative Trigger Function

For more information, please see pdf file Data Sheet and User Manual

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Return and Warranty

Please note that return requests for Owon items must be submitted within 14 days after the delivery date.

Technical Details

Reviews

Bandwidth

200MHz

Sample Rate (real time )

1GS/s

Horizontal Scale (s/div)

2ns/div~100s/div, step by 1~2~5

Display

3.7” color TFT display (640 x 480 pixels)

Channel

dual

Record Length

6K points

Input Coupling

DC, AC, and GND

Vertical Sensitivity

5mV/div~5V/div (at input)

Vertical Resolution (A/D)

8 bits

Trigger Type

Edge, Video, and Alternate

Acquisition Mode

Sample, Peak Detect, and Average

Waveform Math

+, -, x, ÷, invert, FFT

Acquisition Mode

Sample, Peak Detect, and Average

Communication Interface

USB

Power Supply

100V-240V AC, 50/60Hz

Li-ion Battery

7.4V, 6 hours’ operation

Dimensions (W x H x D)

115 x 180 x 40 (mm)

Weight (without package)

645.00 g

Full Scale Reading

3(3/4)digits (max 4000-count)

Input Impedance

10 MΩ

Diode

0V-1V

On / Off Test

< 50 (± 30) beeping

Voltage

VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit);
Max input : DC 1000V
VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits);
Frequency : 40Hz - 400Hz;
Max input : AC 750V (virtual value)

Current

DC : 40mA, 400mA : ±(1.5% ± 1 digit), 10A : ±(3% ± 3 digits)
AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 10A : ±(5% ± 3 digits)

Impedance

400Ω : ±(1% ± 3 digits), 40KΩ - 4μΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits)

Capacitance

51.2nF - 100uF : ±(3% ± 3 digits)

Notes
