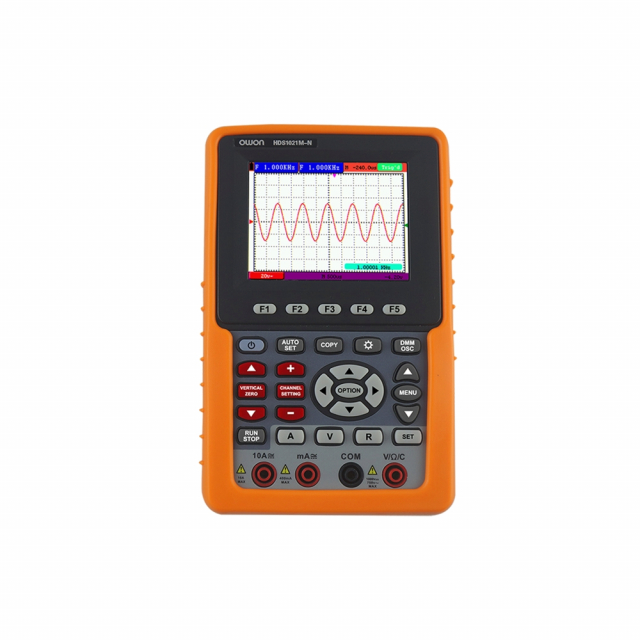

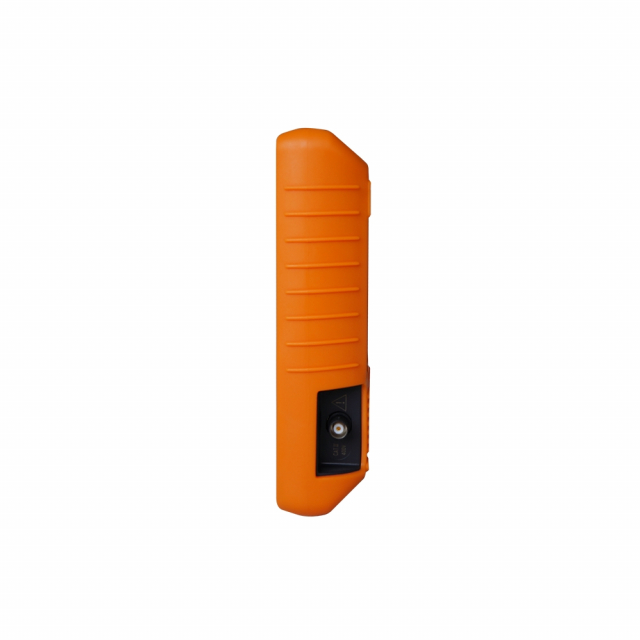

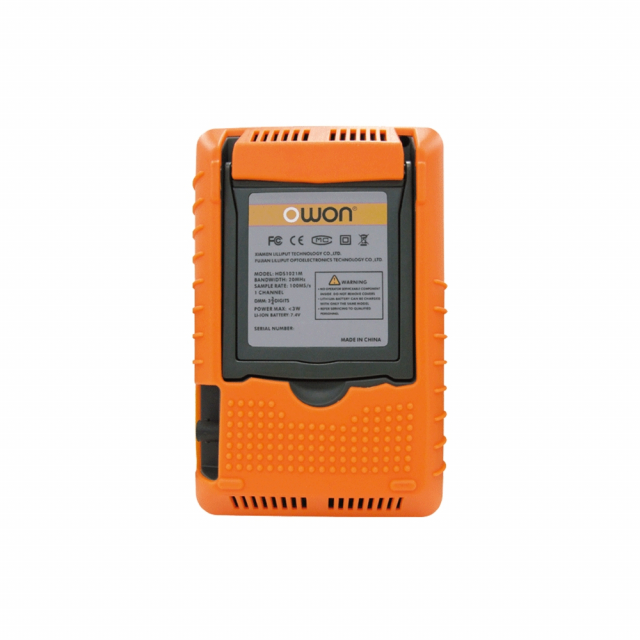

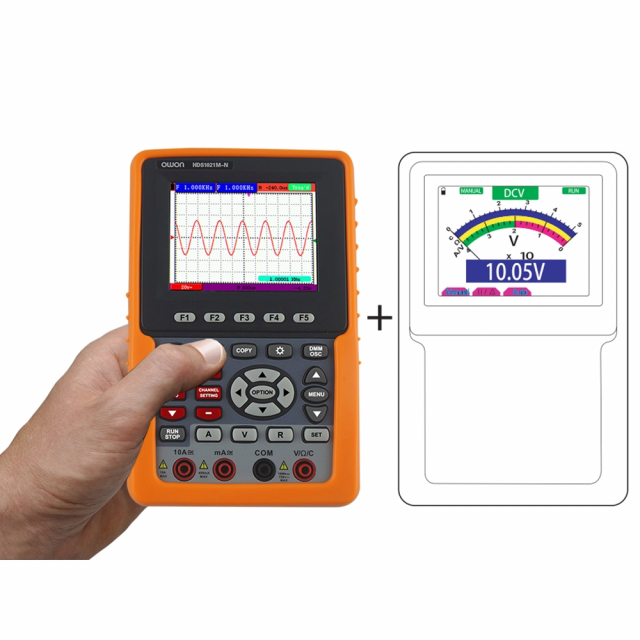

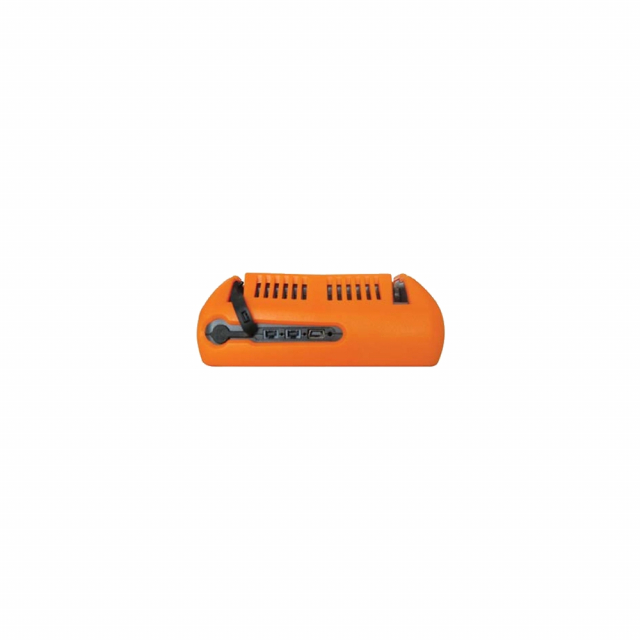

Owon HDS1021M-N HDS-N Series 1-CH Digital Oscilloscope

Brand: Owon
Part #:
HDS1021M-N
Model #:
HDS-N Series
Condition:
Brand New

Choose Channels

$275.10 /Each
Typically In Stock
Check availability
$275.10 /Each
Manufacturer warranty

Description

$275.10 /Each
Typically In Stock
Check availability

Technical details

Main features
  • Channels Single
  • Bandwidth 20MHz
  • Power Supply 100V-240V AC, 50/60Hz
  • Voltage VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); Max input : DC 1000V VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz; Max input : AC 750V (virtual value)
  • Communication Interface mini-USB,mini-RS232
  • Vertical Resolution (A/D) 8 bits
  • Channel Single
  • Display 3.7” color TFT display (640 x 480 pixels)
  • Current DC : 40mA, 400mA : ±(1.5% ± 1 digit), 10A : ±(3% ± 3 digits) AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 10A : ±(5% ± 3 digits)
  • Impedance 400Ω : ±(1% ± 3 digits), 40KΩ - 4μΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits)
  • Dimensions (W x H x D) 115 x 180 x 40 (mm)
  • Input Impedance 10 MΩ
  • Trigger Type Edge, and Video
  • Capacitance 51.2nF - 100uF : ±(3% ± 3 digits)
  • Weight (without package) 645.00 g
  • Horizontal Scale (s/div) 5ns/div~100s/div, step by 1~2.5~5
  • Vertical Sensitivity 5mV/div~5V/div (at input)
  • Trigger Mode Auto, Normal, and Single
  • Record Length 24K points
  • Waveform Storage 4 waveforms
  • Sample Rate (real time ) 500MS/s
  • Trigger Level ±6 divisions from screen center
  • Acquisition Mode Sample, Peak Detect, and Average
  • Li-ion Battery 7.4V, 6 hours’ operation
  • Full Scale Reading 3(3/4)digits (max 4000-count)
  • Diode 0V-1V
  • On / Off Test < 50 (± 30) beeping
