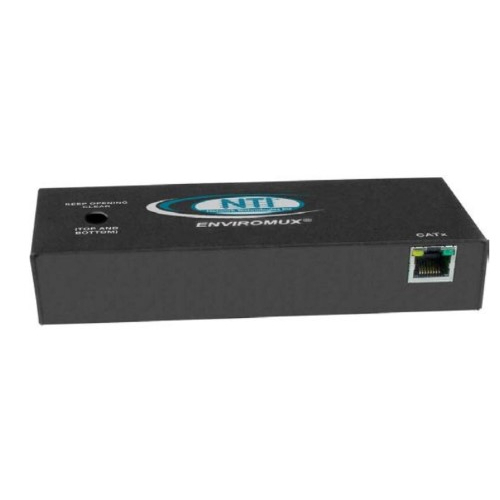

Network Technologies (NTI) e-dust Optical Dust Sensor
Brand:
Network Technologies (NTI)
Part #:
e-dust
Condition:
Brand New
Brand New $175.50 /Each
Manufacturer warranty Description
NTI, e-dust, Optical Dust Sensor
The NTI E-DUST Optical Dust Sensor monitors air particle levels when connected to an E-16D, E-5D, or E-2D Server Environment Monitoring System (SYSTEM). When connected to a SYSTEM via 18-24AWG CAT5/5e/6 cable (up to 1,000 feet away), the air particulate level can be monitored and the SYSTEM can be configured to alert users as to variations in that particulate level.
Features:
- Detects the presence of dust and fine particles using an infrared
- emitting diode (IRLED) and phototransistor
- Able to distinguish smoke from house dust
- RJ45 connector for cable connection
- Voltage supply: 5VDC and 12VDC
- Current consumption: < 50mA
- Dimensions (WxDxH) in: 5.9x2.3x1.2 (150x58x30 mm)
- Operating temperature: 32 to 149°F (0 to 65°C)
- Supports 18-24AWG CAT5/5e/6 cable up to 1,000 ft. (305 m.) (not included)
- Includes Mounting Ears
- CE certified
- RoHS compliant
Technical details
Main features
- Sensor Type infrared emitting diode (IRED) and phototransistor
- Connector RJ45 Female
- Power 5VDC and 12VDC from the SYSTEM
- Certifications CE certified, RoHS compliant
- Current Consumption < 50mA
- Operating Temperature 32 to 149 °F (0 to 65 °C)
- Detection Range 0.00-1.00 mg/m3
- Size (in.) WxDxH 5.9x2.3x1.2 (150x58x30 mm)
- Cable Length supported 18-24AWG CAT5/5e/6 cable to 1,000 ft (305 m). (not included)
