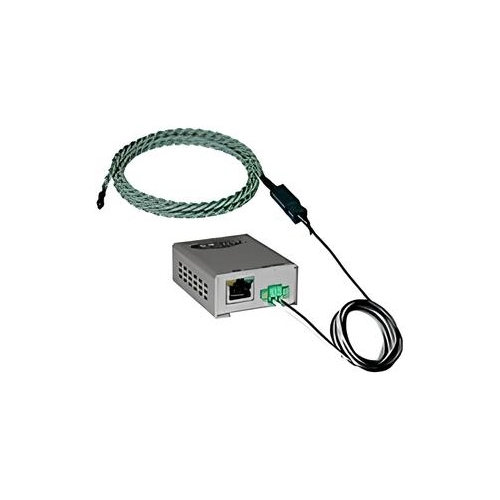

Network Technologies (NTI) e-cds100-5 Legacy Chemical Detection Sensor 100 ft - 5 ft

NTI, e-cds100-5, Legacy Chemical Detection Sensor, Rope-Style - Length of chemical sensor cable - 100 ft. Length of 2-wire cable - 5 ft.

Features:

• For detecting the presence of chemical liquid.
  • Reliably senses acids, bases, and other conductive liquids.
• Detects liquid depth >0.1" (2.5 mm).
• Minimum puddle: 0.6" (15 mm) diameter.
• Chemical resistant - cable functions normally after seven-day exposure to:
  • Fresh deionized water
  • Tap water
  • Sulfuric acid, H₂SO₄ (98%)
  • Sulfuric acid, H₂SO₄ (50%)
  • Hydrochloric acid, HCl (37%)
  • Sodium hydroxide, NaOH (10%)
  • Aqua regia, HNO₃₊₃ HCl
  • Ethylene glycol, C₂H₆O₂ (60% in DI water)
• Features a non-conductive polymer mesh that prevents false alarms caused by dirt/dust buildup, metal contact, or pressure on the rope.
• Voltage and current:
  • Open Circuit: 5VDC max at 1µA.
  • Closed circuit: <300mV at 10.7mA.
• RJ45 connector.
• Supports CAT5/5e/6 cable up to 1,000 ft. (305 m)
• Available chemical sensor cable (x) lengths: 100 feet.
  • 100% waterproof
  • Contact an NTI product consultant for cable lengths over 100 feet (30 meters) - supports up to 1,000 feet (305 meters).
• Available 2-wire plenum cable (y) lengths: 5 feet.
  • Plenum rating: CL2P (UL)
  • Diameter: 0.25 in (6.35mm)
  • Contact an NTI product consultant for cable lengths over 100 feet (30 meters) - supports up to 1,000 feet (305 meters).
• Powered by E-SEMS-16U or SERIMUX-S-x.
• Requires the E-SEMS-16U or SERIMUX-S-x to operate.
• " Use self-adhesive clips (E-CLPxx-LD) to prevent sensor rope cable from shifting after installation.
