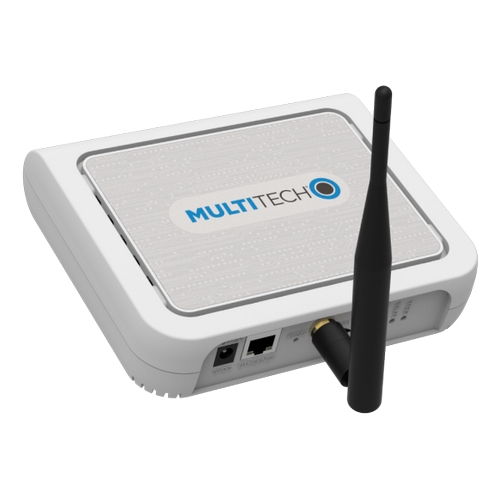

Multi Tech MTCAP-LNA3-915-041A Cat 1 mPower Programmable Access Point

Multi Tech, MTCAP-LNA3-915-041A, LTE Cat 1 mPower Programmable Access Point 8-channel, 915 MHz with external LoRa antenna

MTCAP-LNA3-915-041A Includes Only:

• Power supply with NAM blade
• 6 ft. Ethernet cable
• External LoRa antenna
• Mounting bracket
• Quick Start Guide

Features:

• Ethernet RJ-45 10/100 BaseT for IP backhaul
• Optional 4G-LTE IP backhaul
• Multiple power options serve a variety of applications
• Models available with external LoRa antenna for improved performance
• Built-in LoRa Network Server and Packet Forwarder

Benefits:

• Provide improved service level agreements for LoRa
• Affordable LoRa connectivity in or around commercial buildings
• Quick & easy to deploy
• Carrier approved

The MultiTech Conduit AP conveniently provides deep in-building connectivity and improved performance for network operators and enterprises connecting thousands of IoT assets by harnessing the power of the LoRaWAN protocol. Easy to deploy, the Conduit AP access point extends LoRa connectivity in commercial buildings like hotels, convention centers, offices and retail facilities providing coverage in difficult to reach areas cell tower or rooftop deployments may not penetrate. The Conduit AP offers a development environment for software developers and IT professionals alike. mPower edge intelligence features an easy-to-use graphical interface set-up and includes a built-in LoRa Network Server and Packet Forwarder to connect locally clustered assets on a private LoRaWAN network directly to your choice of IoT data platforms. The Conduit AP extends complex processing to the edge to reduce upstream communication and operational costs. The Conduit AP provides Ethernet IP backhaul and optional Power over Ethernet (MTCAP2 models) or optional 4G-LTE IP backhaul. Commercial buildings and retail facilities present unique installation challenges for installers, specifically in regards to the Access Point location and the availability of power. The Conduit AP offers models with several power options including Power over Ethernet that overcome these challenges and simplify the installation process.
