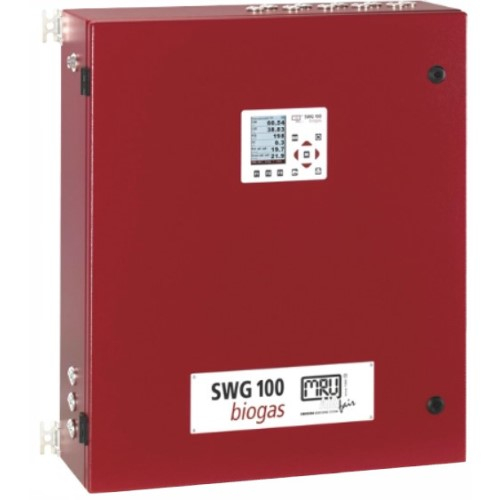

MRU Instruments 951006UL SWG 100 Biogas Analyzer, UL / CSA Certified

Name: MRU Instruments 951006UL SWG 100 Biogas Analyzer, UL / CSA Certified
Brand: MRU Instruments
SKU: 951006UL
Price: 17955 USD
Availability: InStock

Brand: MRU Instruments

Part #:

951006UL

Model #:

SWG 100 Biogas

Condition:

Brand New

Choose Configuration

Standard UL / CSA Certified

$17,955.00 /Each

Notification

Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.

Manufacturer warranty

Description

Features:

Regulated sample gas pump with sample gas Flow monitoring and adjustment
Filtration of sample gas and of acid gases before internal sample Flow sensor
Sampling from Low suction -100mbar up to +250mbar sampling from Low suction -100mbar up to +250mbar
Solenoid valve for auto-zero (with clean ambient air) and for automatic calibration
Using permanently attached gas mixture cylinder (user scope of supply)
Sample gas supply cut-off in case of System alarm, using "fail-safe" solenoid valve (normally closed)
One sample gas sampling inlet port
All stainless steel gas connectors 1/8" ID threads, with 6mm bulkhead compression fittings (also replaceable by user)
Stainless steel adapter 1/8"I - 1/8"O, with Flow restrictor orifice to be mounted at sample gas inlet from high Pressure sampling
Human machine interface with color TFT display, keyboard and RS485 interface (Modbus RTU)
All password protected, intuitive software guided menu, with diagnosis software and logbook
230Vac / 47-63Hz / 90W power supply, 115Vac power supply on request
External Main Switch

Applications:

Biogas / Landfill / CHP, simple

$17,955.00 /Each

Technical details

Main features

Configuration UL / CSA Certified
Power Supply Universal 90 - 240 Vac / 47 - 63 Hz / 90 W (300 W with cabinet heater)
Protection Class IP 54
Operating Temperature 41°F -113°F (+5°C-+45°C) or -4°F -113°F (-20°C-+45°C) with cabinet heater
O2 - Oxygen 0 - 25 % electrochemical
CO2 - Carbon Dioxide 0 - 100% NDIR
CH4 - Methane 0 - 100% NDIR
H2S - Hydrogen Sulfide 0 -.. 200 ppm / 1,000ppm electro-chemical (discontinuous) or 0 -5,000 ppm / 10,000ppm electro-chemical (continuous)
H2 - Hydrogen 0 - 1,000 / 2,000ppm (continuous)
CO - Carbon Monoxide 0 - 4,000ppm / 10,000ppm electro-chemical (continuous)
Cabinet Dimensions Aluminum with anti-corrosive structural painting 27.55" x 23.61" x 8.26" (700 x 600 x 210 mm) ( H x W x D ) for wall or rack mounting
Weight / Protection 55lbs (25kg) / IP54
