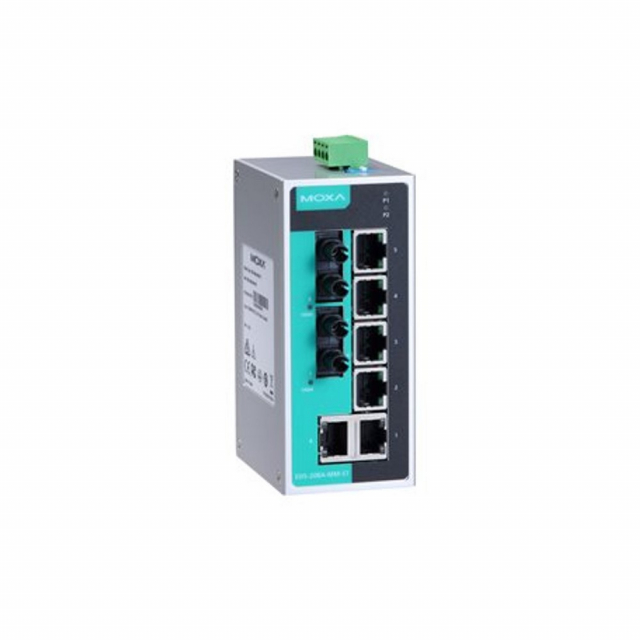

Moxa EDS-208A-MM-ST Unmanaged Ethernet Switch
Brand NewChoose Version
Manufacturer warranty Description
Moxa, EDS-208A-MM-ST, Unmanaged Ethernet Switch with 6x10/100BaseT(X)-Ports and 2x100BaseFX Multi-Mode-Ports with ST Connectors
Features:
- 10/100BaseT(X) (RJ45 Connector), 100BaseFX (multi/single-mode, SC or ST connector)
- Redundant dual 12/24/48 VDC power inputs
- IP30 aluminum housing
- Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/LR/ABS/NK)
- -40 to 75°C wide operating temperature range (-T models)
The EDS-208A Series 8-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The EDS-208A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.
The EDS-208A switches are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.
Technical details
- Weight 275 g (0.61 lb)
- Dimensions 50 x 114 x 70 mm (1.96 x 4.49 x 2.76 in)
- Input Voltage 12/24/48 VDC Redundant dual inputs
- Operating Voltage 9.6 to 60 VDC
- Standards Telcordia (Bellcore), GB, IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
- Installation DIN-rail mounting Wall mounting
- Version Aluminum Housing
- Connection 1 removable 4-contact terminal block(s)
- Housing Aluminum
- Operating Temperature -10 to 60°C (14 to 140°F)
- IP Rating IP30
- Vibration IEC 60068-2-6
- Shock IEC 60068-2-27
- EMC EN 55032/24
- Safety UL 508
- Input Current 0.15 A at 24 VDC
- Ethernet Interface Broadcast storm protection
- Hazardous Locations ATEX Class I Division 2
- Time 2,701,531 hrs
- MAC table size 2 K
- Packet buffer size 768 kBits
- EMI CISPR 32, FCC Part 15B Class A
- Overload Current Protection Supported
- Reverse Polarity Protection Supported
- Traffic Control NEMA TS2
- EMS IEC 61000-4-2 ESD: Contact: 6 kV Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway EN 50121-4
- Ambient Relative Humidity 5 to 95% (non-condensing)
- Freefall IEC 60068-2-31
- Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
- 10/100BaseT(X) Ports (RJ45 Connector) 6 Auto-negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
- Maritime ABS LR NK DNV
- 100BaseFX Ports (multi-mode ST connector) 2
- Processing Type Store and Forward
