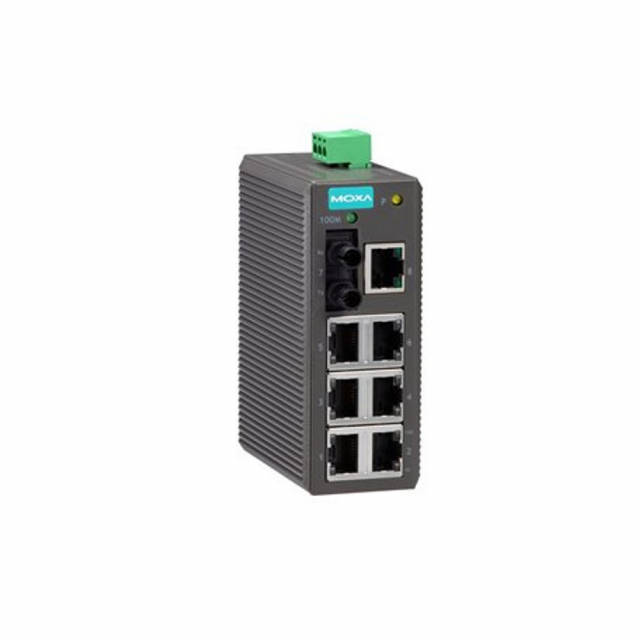

Moxa, EDS-208-M-ST, Entry-Level Unmanaged Ethernet Switch with 7x10/100Baset(X)-Ports and 1xMulti Mode 100BaseFX-Port with ST Connector

Features:

10/100BaseT(X) (RJ45 Connector), 100BaseFX (multi-mode, SC/ST connectors)
IEEE802.3/802.3u/802.3x support
Broadcast storm protection
DIN-rail mounting ability
-10 to 60°C operating temperature range

The EDS-208 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature capability, and the IP30 housing with LED indicators make the plug-and-play EDS-208 switches easy to use and reliable.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Ethernet Interface

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control

10/100BaseT(X) Ports (RJ45 Connector)

100BaseFX Ports (multi-mode ST connector)

Switch Properties

Processing Type

Store and Forward

MAC Table Size

2 K

Packet Buffer Size

768 kBits

Power Parameters

Input Voltage

24 VDC

Input Current

0.1 A at 24 VDC

Operating Voltage

12 to 48 VDC

Connection

1 removable 3-contact terminal block(s)

Overload Current Protection

2.5 A at 24 VDC

Reverse Polarity Protection

Supported

Physical Characteristics

Housing

Plastic

IP Rating

IP30

Dimensions

40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in)

Weight

170 g (0.38 lb)

Installation

DIN-rail mounting

Environmental Limits

Operating Temperature

-10 to 60°C (14 to 140°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

UL 508
UL 60950-1
EN 62368-1 (LVD)

EMC

EN 55032/35

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV
Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

Freefall

IEC 60068-2-31

MTBF

Time

3,562,556 hrs

Standards

Telcordia (Bellcore), GB

Product Details

Ethernet Interface

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control

10/100BaseT(X) Ports (RJ45 Connector)

100BaseFX Ports (multi-mode ST connector)

Switch Properties

Processing Type

Store and Forward

MAC Table Size

2 K

Packet Buffer Size

768 kBits

Power Parameters

Input Voltage

24 VDC

Input Current

0.1 A at 24 VDC

Operating Voltage

12 to 48 VDC

Connection

1 removable 3-contact terminal block(s)

Overload Current Protection

2.5 A at 24 VDC

Reverse Polarity Protection

Supported

Physical Characteristics

Housing

Plastic

IP Rating

IP30

Dimensions

40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in)

Weight

170 g (0.38 lb)

Installation

DIN-rail mounting

Environmental Limits

Operating Temperature

-10 to 60°C (14 to 140°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

UL 508
UL 60950-1
EN 62368-1 (LVD)

EMC

EN 55032/35

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV
Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

Freefall

IEC 60068-2-31

MTBF

Time

3,562,556 hrs

Standards

Telcordia (Bellcore), GB
