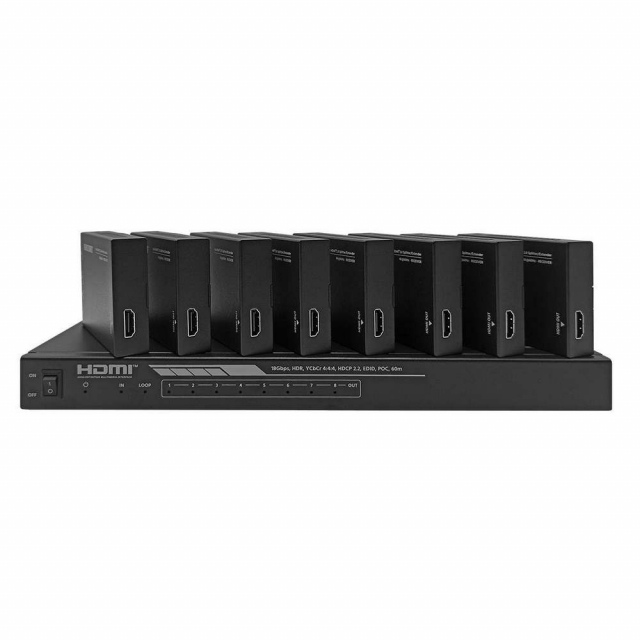

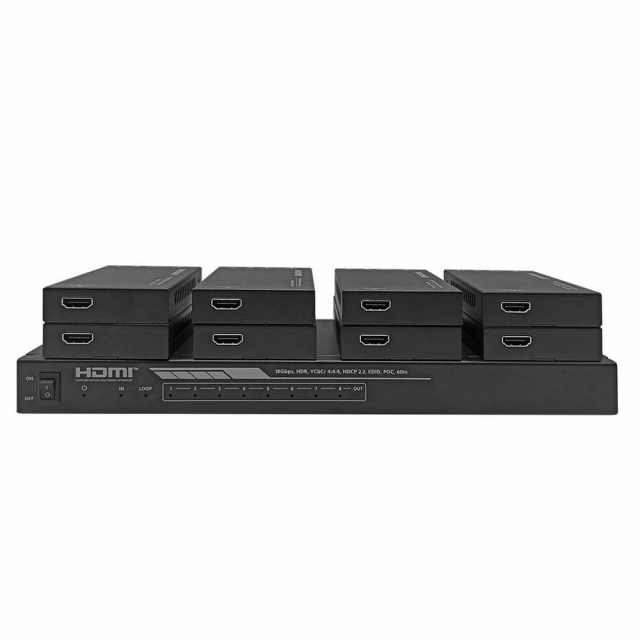

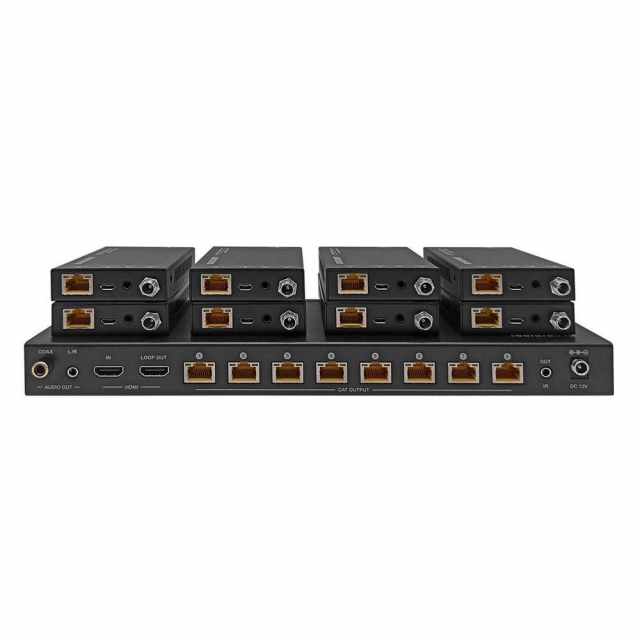

Monoprice, 42272, Blackbird 4K HDMI 2.0 1x8 Splitter and Extender Complete Solution Kit, 18Gbps, HDR, 4K@60Hz, YCbCr 4:4:4, HDCP 2.2, Cat6/6a/7 with IR, Loop Out, EDID, POC with 8 Receivers, 60 m, 197ft
42271 Includes Only:

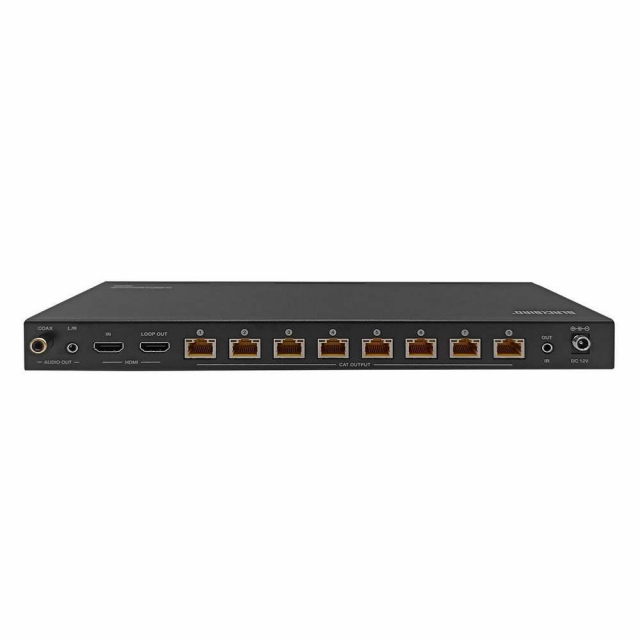

- 1x 4K HDMI"1x8 Splitter/Extender

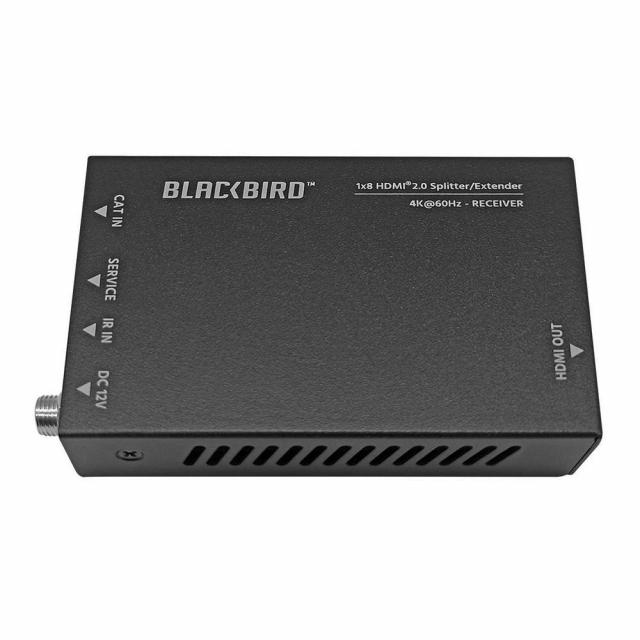

- 8x Receivers 8x IR Receivers
- 1x IR Transmitter
- 1x AC Power Adapter (12 VDC, 2.SA)
- 1x User's Manual
Features:
- Supports video resolutions up to 4K at60Hz with YCbCr 4:4:4 color space
- Distributes a single HDMI® video source to eight distant displays
- Compliant with the HDMI 2.0b and HDCP™ 2.2/1.x standards
- Provides up to 18Gbps video bandwidth
- Can extend 4K at60Hz signals to distances up to 114 feet (35 meters), 4K at30Hz signals to distances up to 164 feet (50 meters), and 1080p at60Hz signals to distances up to 196 feet (60 meters) over a single Cat6/6a/7 Ethernet cable
- Supports HDR10, HDR10+, Dolby Vision™, and Hyper Log-Gamma (HLG)
- Supports 7.1 high definition audio pass-through
- Can extract audio from HDMI® signal for distribution to digital coaxial and 3.5 mm stereo analog audio outputs
- Supports one-way IR control signal pass-through
- Supports the Power over Cable (PoC) feature, allowing the receivers to be powered by the transmitter over the Ethernet cable
This 4K HDMI® 1x8 Splitter/Extender allows you to distribute a single HDMI video source to up to eight distant displays. It can extend 4K at60Hz signals to distances up to 114 feet (35 meters), 4K at30Hz signals to distances up to 164 feet (50 meters), and 1080p at60Hz signals to distances up to 196 feet (60 meters) over a single Cat6/6a/7 Ethernet cable. It supports up to 7.1-channel audio pass-through, can extract the audio for separate amplification, and features advanced EDID® management. It supports the Power over Cable (PoC) feature, allowing the receivers to be powered by the transmitter over the Ethernet cable.
