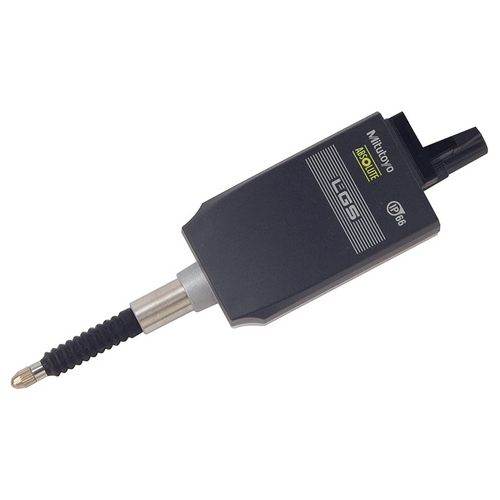

Buy Mitutoyo 575-313, Linear Gage, Range 0.5 in

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Electrostatic capacitance type encoder makes it possible to maintain the reference point even when the power is switched off. Excellent protection against dust and splashing water (IP66) on the factory floor.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Measuring Range

0.5 in

Resolution

0.0005"

Measuring Accuracy (20°C)

0.0008 n

Quantizing error

±1 count

Measuring Force

Contact point upwards- 1.6N or less
Contact point horizontal- 1.8N or less
Contact point downwards- 2N or lessN

Response speed

Unlimited (not applicable to scanning measurement)

Output

Digimatic output

Position detection method

ABSOLUTE electrostatic capacitance type linear encoder

Mass

Approx. 190g

Contact Point

Dia. 3mm carbide-tipped (fixing screw: M2.5 (P=0.45)x5)

Stem Dia

Dia. 9.52=3/8"

Bearing type

Slide bearing

Dust/water resistance

Equivalent to IP66 (only gage head)

Output cable length

2m (directly extended from the main unit)

Operating temperature (humidity) range

0 to 40°C (RH 20 to 80%, no condensation)

Storage temperature(humidity) range

-10 to 60°C (RH 20 to 80%, no condensation)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Measuring Range

0.5 in

Resolution

0.0005"

Measuring Accuracy (20°C)

0.0008 n

Quantizing error

±1 count

Measuring Force

Contact point upwards- 1.6N or less
Contact point horizontal- 1.8N or less
Contact point downwards- 2N or lessN

Response speed

Unlimited (not applicable to scanning measurement)

Output

Digimatic output

Position detection method

ABSOLUTE electrostatic capacitance type linear encoder

Mass

Approx. 190g

Contact Point

Dia. 3mm carbide-tipped (fixing screw: M2.5 (P=0.45)x5)

Stem Dia

Dia. 9.52=3/8"

Bearing type

Slide bearing

Dust/water resistance

Equivalent to IP66 (only gage head)

Output cable length

2m (directly extended from the main unit)

Operating temperature (humidity) range

0 to 40°C (RH 20 to 80%, no condensation)

Storage temperature(humidity) range

-10 to 60°C (RH 20 to 80%, no condensation)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
