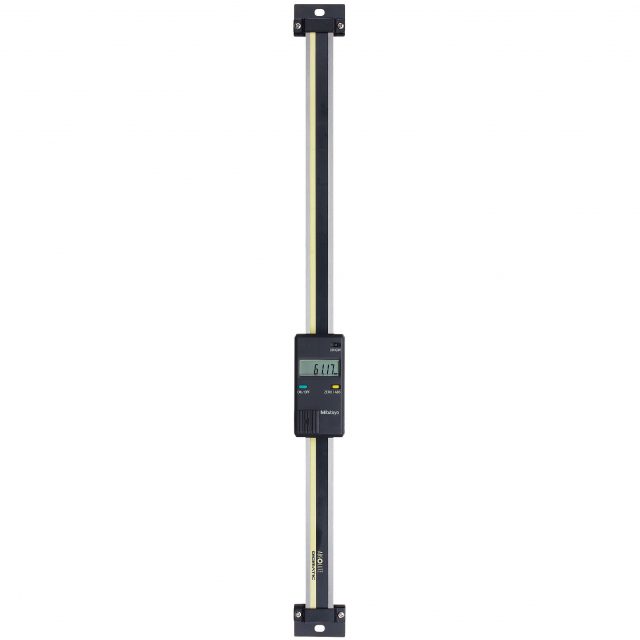

Mitutoyo 572-300-10 Vertical 100mm Digimatic Scale Unit
Condition:
Brand New
Brand New $413.60 /Each
$447.00 You save $33.40 7%
Notification
This product will be drop-shipped directly from the manufacturer. We will provide you with the manufacturer's lead time once advised.
Manufacturer warranty Description
Features:
- ORIGIN key allows the setting of an absolute zero point to be used as a reference in subsequent measurements
- Vertical display according to the scale mounting direction
- Long battery life for easier maintenance
- Equipped with an output port to transfer measurement data to implement in control and gaging systems
The Mitutoyo SDV-D Digimatic single-function vertical linear scale facilitates mounting on jigs, tools, and small machine tools to enable accurate positioning. A built-in ABSOLUTE scale is also included, using the Mitutoyo ABS point, which doesn't require zero-set when powered on. In addition, overspeed errors have been eliminated which improves reliability.
Technical details
Main features
- Accuracy 0,03 mm
- Data Output Yes
- Measuring Range (mm) 0 - 100
- ON/OFF Yes
- Mass 0.25 kg
- Inch-Metric Metric
- Maximum Response Speed Unlimited
- Low Voltage Alarm Yes
- origin Yes
