Mitutoyo 568-464 Absolute Digimatic Digital Snap Bore Gage, 0.5-0.65"

Mitutoyo, 568-464, Absolute Digimatic Digital Snap Bore Gage, 12 - 16 mm / 0.5-0.65"

568-464 Includes Only:

• A fitted wooden case
• Digital Bore Gage

Features:

• Optional extension rod allows for measuring deep holes
• There're optional setting rings for zero point adjustment

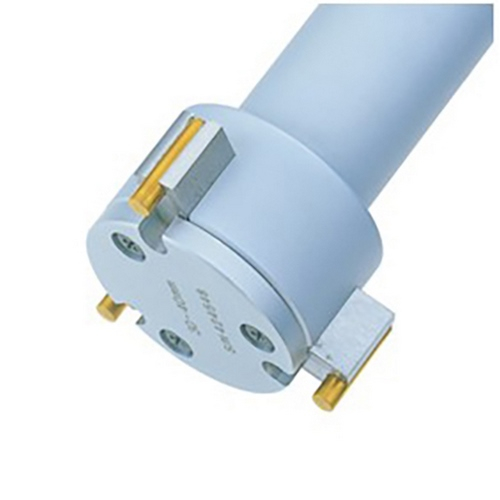

• Contact points are constructed of TiN for impact resistance and better durability
• The design allows for measurements closer to the bottom of blind bore holes
• SPC output function offers quick and easy data management in real-time
• Absolute (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Elimination of Overspeed errors provides higher measurement reliability and repeatability
• Functions: Zero/ABS Setting, Go/No-Go judgment, power On/Off

The Mitutoyo Borematic ABS Digimatic snap-open bore gage offers accurate bore measurements quicker and easier than ever before. Measurements are displayed on a large LCD readout that rotates 330° for easy reading in any instrument orientation. The Mitutoyo Borematic snap-on bore gage features an activation handle with a precision-balanced spring that smoothly retracts the anvils when pressed. Titanium Nitride (TiN) coated measuring contact points provide excellent durability and impact resistance which allows the instrument to measure to the bottom of a blind hole. With the Absolute encoder, once the origin point is set with the ORIGIN button, the Borematic retains the setting for the entire battery life. Repeated origin setting (presetting) is no longer necessary.
