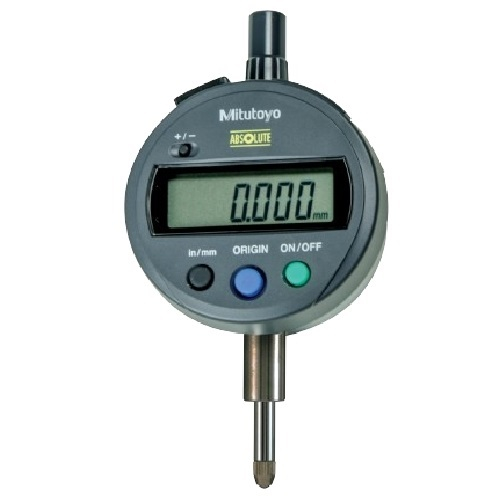

Mitutoyo, 543-793B-10, ASME/ANSI Type Digital 0.5" Indicator with Flat Back Plate and 0.0001" Step

Features:

The ABSOLUTE sensor means you don‘t have to carry out the origin setting every time you power it on, saving you time and hassle.
You can access all functions by using the large, user-friendlybuttons on the front of the indicator.
A large character height of 9 mm provides good readability.
Exceptional battery life.

This is a standard model of indicator that is reliable and easy to use.

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Digital/Analog	Digital
Inch-Metric	Inch/Metric
Range	0.5"/12.7 mm
Digital Step	0.0001"/0.001 mm
Maximum Permissible Error E Mpe (Total Range)	±0.0001"/0.003 mm
H Mpe (Hysteresis)	0.0001"/0.002 mm
R Mpe (Repeatability)	0.0001"/0.002 mm
Measuring Force Mpl	≤1.5 N
Protection	IP42
Type	ASME/ANSI/AGD Standard
Mass	140 g
Display	LCD, character height 9 mm
Maximum Response Speed	Unlimited
Alarm	Low voltage, sensor error, ABS data composition error
Stem Dia.	9.52 mm
Contact Point	Carbide ball, thread: No.4-48UNF
Power Supply	1 battery SR44
Remarks	This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable the USB-ITPAK Software is required.
Digimatic Data Output	Yes
On/Off	Yes
Origin (Abs-Zero)	Yes
Counting Direction Switchable	Yes
Inch/Metric Switchable	Yes
Digital Scale	Electrostatic capacitance type absolute linear encoder

Digital/Analog	Digital
Inch-Metric	Inch/Metric
Range	0.5"/12.7 mm
Digital Step	0.0001"/0.001 mm
Maximum Permissible Error E Mpe (Total Range)	±0.0001"/0.003 mm
H Mpe (Hysteresis)	0.0001"/0.002 mm
R Mpe (Repeatability)	0.0001"/0.002 mm
Measuring Force Mpl	≤1.5 N
Protection	IP42
Type	ASME/ANSI/AGD Standard
Mass	140 g
Display	LCD, character height 9 mm
Maximum Response Speed	Unlimited
Alarm	Low voltage, sensor error, ABS data composition error
Stem Dia.	9.52 mm
Contact Point	Carbide ball, thread: No.4-48UNF
Power Supply	1 battery SR44
Remarks	This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable the USB-ITPAK Software is required.
Digimatic Data Output	Yes
On/Off	Yes
Origin (Abs-Zero)	Yes
Counting Direction Switchable	Yes
Inch/Metric Switchable	Yes
Digital Scale	Electrostatic capacitance type absolute linear encoder

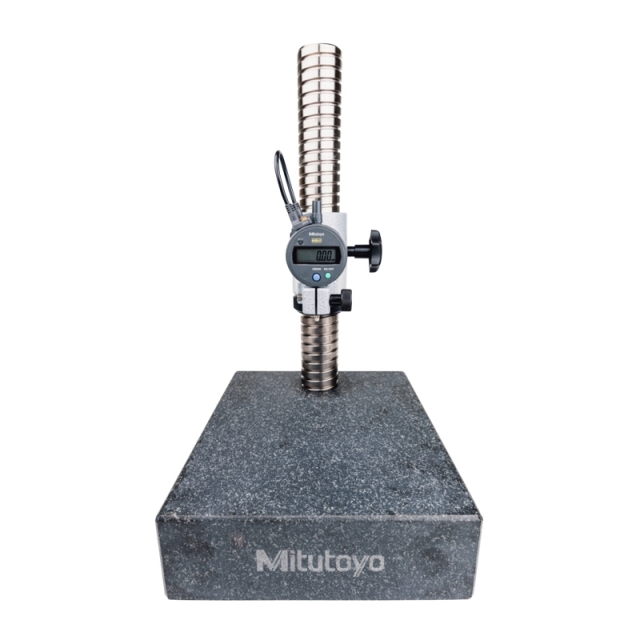

Note: Please read description carefully. Do not base your order on the picture presented.
