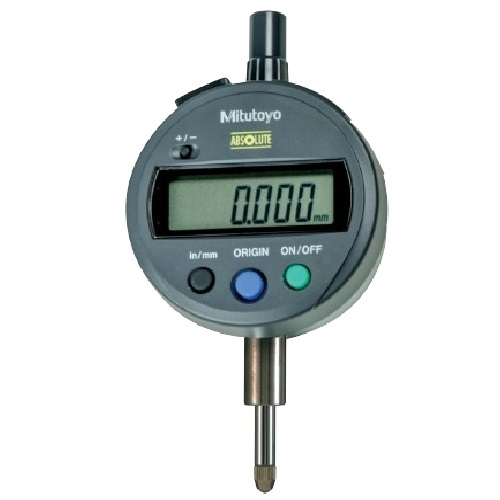

Mitutoyo 543-792-10 ASME/ANSI Type Digital 0.5" Indicator
Condition:
Brand New
Brand NewChoose Version
Contact Us For Pricing
Manufacturer warranty Description
Mitutoyo, 543-792-10, ASME/ANSI Type Digital 0.5" Indicator with Lug Back Plate and 0.00005" Step
Features:
- The ABSOLUTE sensor means you don‘t have to carry out the origin setting every time you power it on, saving you time and hassle.
- You can access all functions by using the large, user-friendlybuttons on the front of the indicator.
- A large character height of 9 mm provides good readability.
- Exceptional battery life.
This is a standard model of indicator that is reliable and easy to use.
Dimensions:
Technical details
Main features
- Power Supply 1 battery SR44
- Range 0.5"/12.7 mm
- Remarks This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable the USB-ITPAK Software is required.
- Contact Point Carbide ball, thread: M2.5x0.45
- Type ASME/ANSI/AGD Standard
- Version ASME/ANSI Type
- Display LCD, character height 9 mm
- Protection IP42
- ON/OFF Yes
- Alarm Low voltage, sensor error, ABS data composition error
- Mass 150 g
- Digital/Analog Digital
- Inch-Metric Inch/Metric
- Digital step 0.00005"/0.001 mm
- Maximum Response Speed Unlimited
- Origin (Abs-Zero) Yes
- Maximum Permissible Error E Mpe (Total Range) ±0.0001"/0.003 mm
- H Mpe (Hysteresis) 0.0001"/0.002 mm
- R Mpe (Repeatability) 0.0001"/0.002 mm
- Measuring Force Mpl ≤1.5 N
- Stem Dia. 9.52 mm
- Digimatic Data Output Yes
- Counting Direction Switchable Yes
- Inch/Metric Switchable Yes
- Digital Scale Electrostatic capacitance type absolute linear encoder
