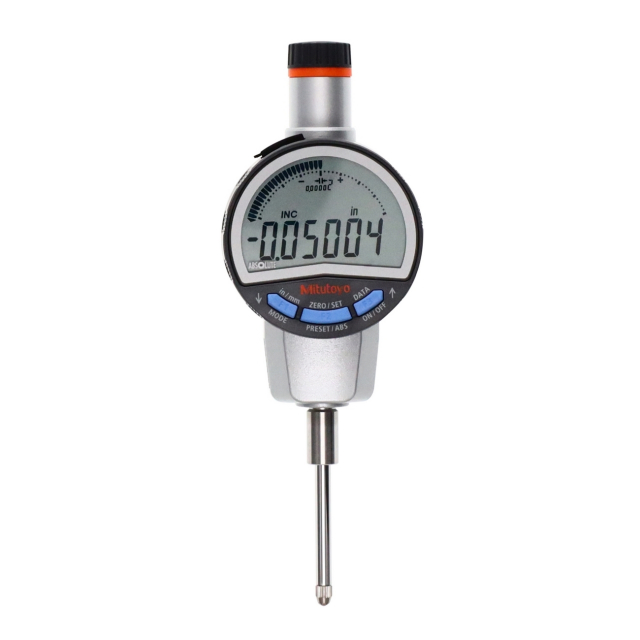

Mitutoyo, 543-727B, ASME/ANSI Type Digital 1" Indicator with Flat Back Plate and 0.0005" Step

543-727B includes Only:

Features:

Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
Excellent visibility with a large digital/analog display.
Measurements such as simple calculation and peak detection are possible.
Equipped with a calibration schedule warning function.
GO/±NG judgement is performed by setting the upper and lower tolerances.
Display 330° rotatable.
A function lock protects the display against unauthorized use.

This is a multifunction standard indicator that is reliable and easy to use.

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Digital/Analog	Digital
Inch-Metric	Inch/Metric
Range	1"/25.4 mm
Digital Step	0.0005"/0.01 mm
Maximum Permissible Error E Mpe (Total Range)	±0.001"/0.02 mm
H Mpe (Hysteresis)	0.001"/0.02 mm
R Mpe (Repeatability)	0.0005"/0.01 mm
Measuring Force Mpl	≤1.8 N
Protection	IP42
Type	ASME/ANSI/AGD Standard
Mass	190 g
Display	LCD, character height 11 mm, 330° rotatable
Maximum Response Speed	Unlimited
Measurement Frequency (Max/Min/Range)	50 times/s
Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Stem Dia.	9.52 mm
Contact Point	Carbide ball, thread: M2.5x0.45
Power Supply	1 battery CR2032
Battery Life	Approx. 2700 hours (continuous use)
Data/Hold	Yes
Digimatic Data Output	Yes
Digimatic S1 Bidirectional Interface	Yes
On/Off	Yes
Analog Bar Resolution Switchable	Yes
Function Lock	Yes
Go/±Ng Judgement	Yes
Abs / Inc (Inc Zero)	Yes
Analog Bar Resolution Selection	Yes
Auto Power Off Setting	Yes
Calculation Function (With Formula)	Yes
Customizing Keys	Yes
Counting Direction Switchable	Yes
Inch/Metric Switchable	Yes
Calibration Warning Function	Yes
Digital Step Switchable	Yes
Digital Scale	Electrostatic capacitance type absolute linear encoder

Notes
