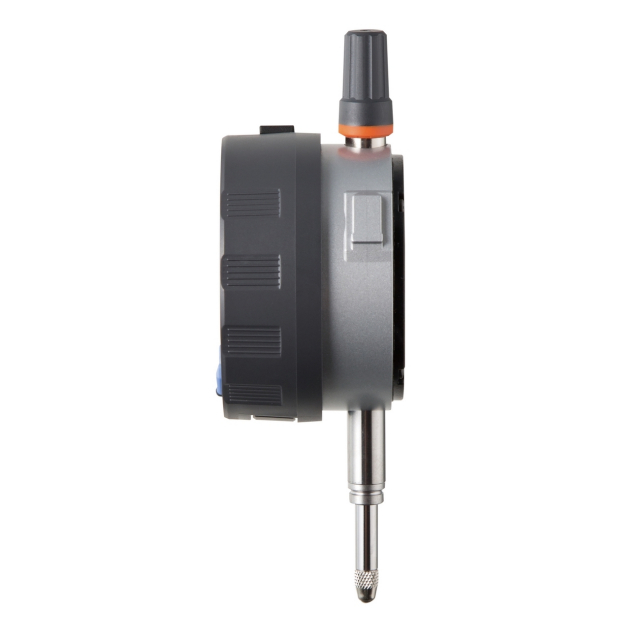

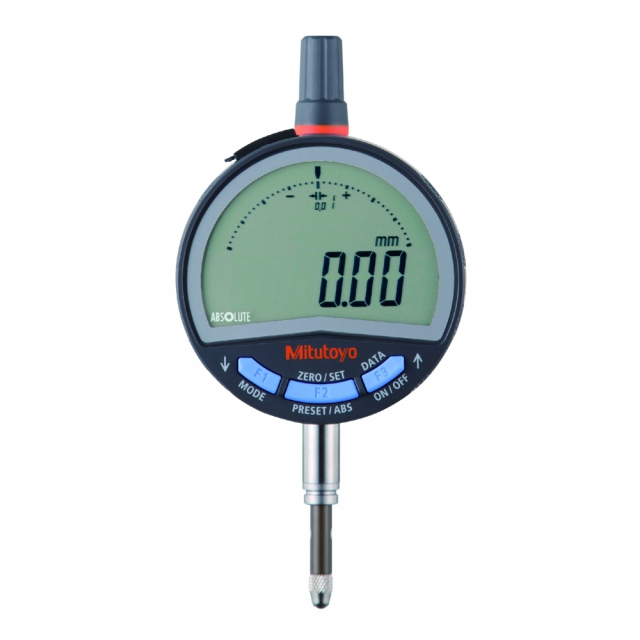

Mitutoyo 543-715B Low Force Indicator with Flat Back Plate
Condition:
Brand New
Brand NewContact Us For Pricing
Manufacturer warranty Description
Mitutoyo, 543-715B, Low Force Type Digital 12.7mm Indicator with Flat Back Plate and 0.01 mm Step
543-715B includes Only:
- Digital Indicator
- CR-2032 battery
- Battery lid opener
- Weight
- Certificate of inspection
Features:
- Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
- The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
- Excellent visibility with a large digital/analog display.
- Measurements such as simple calculation and peak detection are possible.
- Equipped with a calibration schedule warning function.
- GO/±NG judgement is performed by setting the upper and lower tolerances.
- Display 330° rotatable.
- A function lock protects the display against unauthorized use.
This is a multifunction standard indicator that is reliable and easy to use.
Dimensions:
Technical details
Main features
- Power Supply 1 battery CR2032
- Range 12.7 mm

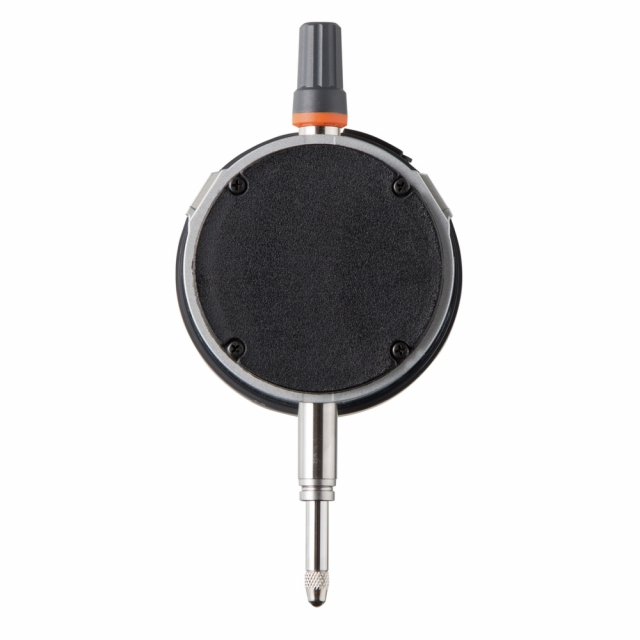

- Back Type Flat
- Contact Point Carbide ball, thread: M2.5x0.45
- Type EN ISO Standard
- Display LCD, character height 11 mm, 330° rotatable
- Protection IP42
- Digital Step (mm) 0.01
- Battery Life Approx. 2700 hours (continuous use)
- ON/OFF Yes
- Alarm Low voltage, setting errors, sensor error, display overflow a.s.o.
- Mass 160 g
- Inch-Metric Metric
- Digital step 0.0005 mm
- ABS / INC (INC ZERO) Yes
- Function lock Yes
- Maximum Response Speed Unlimited
- Maximum Permissible Error E Mpe (Total Range) 0.003 mm
- H Mpe (Hysteresis) 0.002 mm
- R Mpe (Repeatability) 0.002 mm
- Measuring Force Mpl 0.4-0.7 N
- Measurement Frequency (Max/Min/Range) 50 times/s
- Stem Dia. 8 mm
- Data/Hold Yes
- Digimatic Data Output Yes
- Digimatic S1 Bidirectional Interface Yes
- Analog Bar Resolution Switchable Yes
- Go/±Ng Judgement Yes
- Analog Bar Resolution Selection Yes
- Auto Power Off Setting Yes
- Calculation Function (With Formula) Yes
- Customizing Keys Yes
- Counting Direction Switchable Yes
- Inch/Metric Switchable No
- Calibration Warning Function Yes
- Digital Step Switchable Yes
- Digital Scale Electrostatic capacitance type absolute linear encoder
