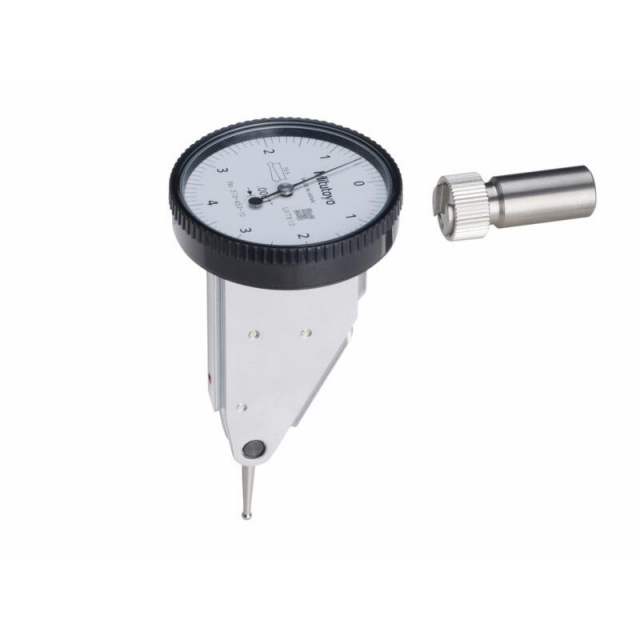

Mitutoyo, 513-454-10E, Horizontal Type-Tilted, Vertical and Parallel, Basic, 20.9mm
Features:
- The universal holder allows easy hole centering
- Dial face always faces upward when the indicator is rotated for easy reading
- No-clutch structure provides automatic reversal of measuring direction
- O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
- Contact point length is printed on the dial face to avoid accuracy issues
- Ne-wly designed contact point holder prevents backlash
- Contact point is carbide tipped for lasting accuracy, durability
- Crystal is glare-free with a scratch-resistant coating
- Supplied in a fitted plastic case
The Mitutoyo horizontal titled face, vertical and parallel dial test indicators makes reading graduations on the dial easier for users, especially when working with a large workpiece or on a tall workbench. These specialty dial test indicators have a reversible measuring direction and adjustable contact point making them ideal for measuring surface variations in narrow or recessed areas with high precision. Their one-piece movement provides high-impact resistance and better durability, while jeweled bearings deliver high sensitivity and quick response. The horizontal face is parallel to the axis of the indicator, and the indicator can be mounted either horizontally or vertically from the front, top or back of the indicator.
