Mitutoyo 511-787-20 Two-Point 1.4-2.5" Dial Bore Gauge

Mitutoyo, 511-787-20, Two-Point 1.4-2.5" Dial Bore Gauge with 0.0005" Graduation for Short Length

Features:

• Large grips are easier to hold and reduce heat transfer from the operator for better accuracy
• The Gauge stem diameter is .375"
• Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
• Includes various anvils and spacers depending on size of Gauge ordered
• Supplied in a fitted plastic case

The Mitutoyo short-leg bore Gauge is ideal for measuring the inside dimensions of shallow bores and holes. Due to its short-leg design, this bore Gauge is more compact, lighter, and easier to use than bigger bore Gauges while maintaining excellent accuracy. A two-point contact system detects geometry anomalies such as ovalness and taper.

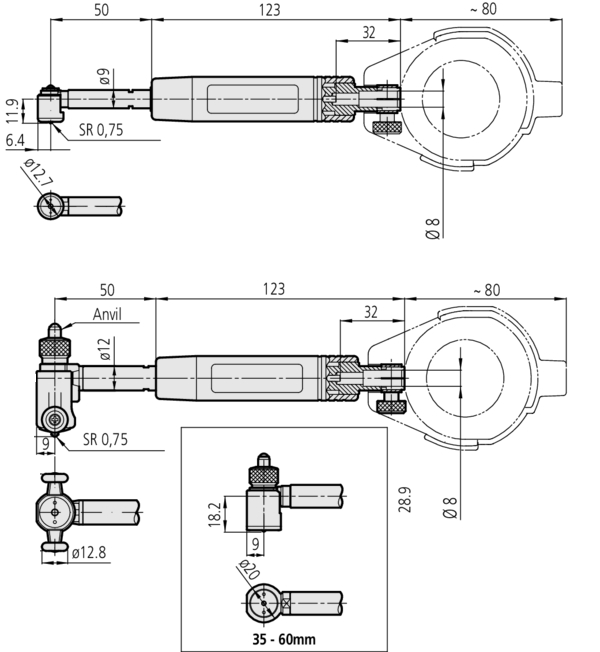

Dimensions:
