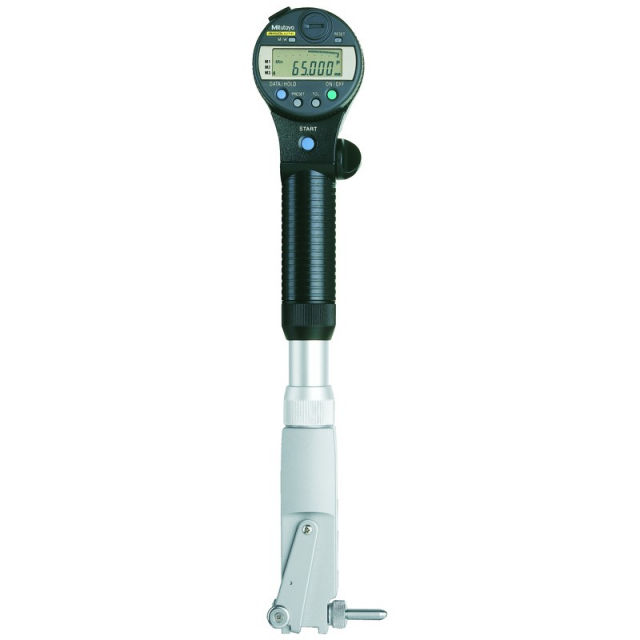

Mitutoyo 511-521 Absolute Digimatic Bore Gage, 1.8-4"

511-521 Includes Only:

• A fitted wooden case
• Bore Gage

Features:

• Go/No-Go judgment is performed by setting the upper and lower tolerances
• The design allows for measurements closer to the bottom of blind bore holes
• SPC output function allows for easier, faster data management in real-time
• Absolute (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Functions: Origin Set, Zero/ABS Setting, GO/NO-GO judgment, power On/Off, and inch/ mm conversion
• Alarms: low battery voltage, scale contamination, over-flow error, tolerance limit setting error

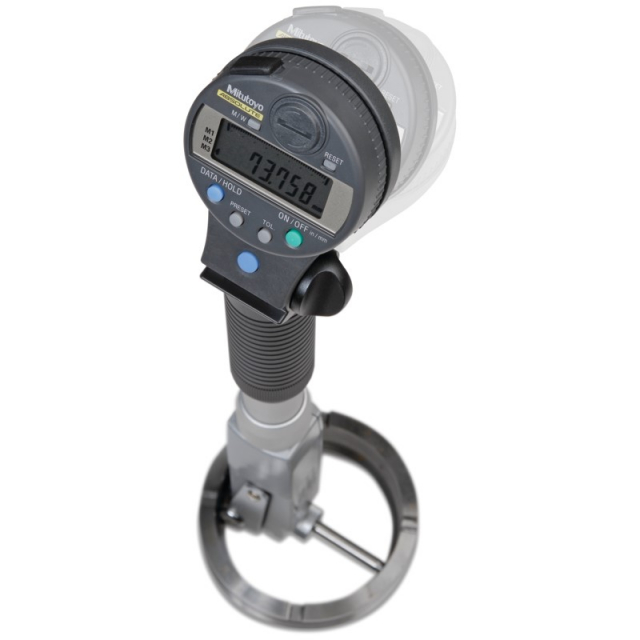

The Mitutoyo Absolute Digimatic digital bore gage takes inner dimension measurements to the next level with highly accurate, repeatable results that are easy to obtain. The gage's minimum value holding function provides the easy detection of a hole's diameter, and an integrated analog bar indicator enhances the intuition of the reading. The digital bore gage has an accuracy of +/-0.00012″ with a resolution of 0.00005″ and provides the measurements on an easy-to-read, dust and water-resistant LCD display.
