Mitutoyo 368-914 Mechanical Three-Point Internal Micrometers 50-100mm
Brand NewNotification
This product will be drop-shipped directly from the manufacturer. We will provide you with the manufacturer's lead time once advised.
Manufacturer warranty Description
Mitutoyo, 368-914, Mechanical Holtest Three-Point Internal Micrometers, 4 Gage Set 50-100mm
Features:
- Optional extension rod allows for measuring deep holes
- Scale on thimble and sleeve is laser etched for easier reading in all conditions

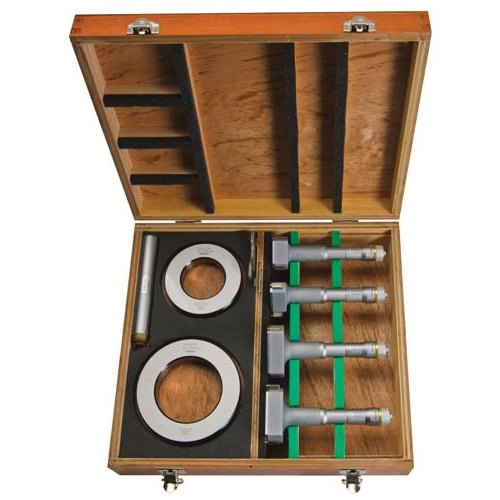

- Holtests up to 100mm / 4" diameter measurements supplied in a fitted plastic case
- Holtests over 100mm / 4" diameter measurements supplied in a wooden case
The Mitutoyo mechanical Holtest internal micrometer set includes complete gages (micrometer head units and measuring heads) for each size. Three hardened-steel anvils evenly spaced at 120° allow for true alignment of the axis bore for accurate, easily repeatable measurements. The holtest's ratchet stop mechanism provides a constant measuring force on the hardened-steel spindle to ensure accurate, even measurements.
Technical details
- Accuracy ±3, 4µm
- Range 50 - 100mm
- Graduation 0.005mm
- Units Metric
- Ratchet/Thimble Ratchet Stop
- Remarks with extension rod
- Contact Point TiN coating
- Range Max (mm) 50-100
- Technology Mechanical
- Measuring Method Three-point method
- Setting rings included 63, 87
- Individual Range 62-75, 75-88, 87-100, 50-65mm
