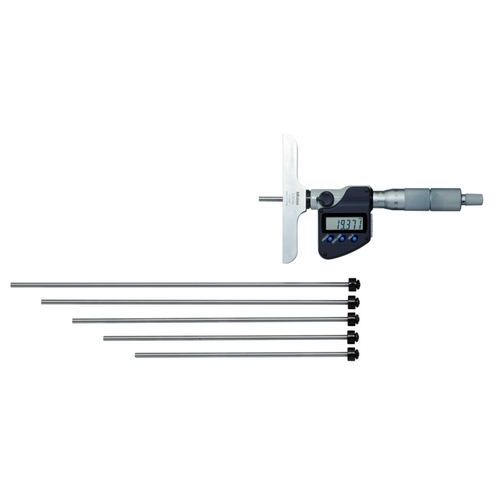

Buy Mitutoyo 329-250-30, Digital Depth Micrometereter 0-150mm, 6 Rods

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

4mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement
The ratchet stop provides constant measuring force.
Measuring rod lock.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Range:	0 - 150 mm
Base (W x T):	101.6 x 16 mm
Number of rods:	6
Delivered:	Including box, key and 1 battery
Mass:	540 g
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring span:	25 mm
Spindle pitch:	0,5 mm with spindle lock
Zero point errors of rods:	±4 µm (0-150 mm) ±6 µm (0-300 mm)
Micrometer Head Feed (0-25 mm) (excluding quantizing error):	±3 µm
Flatness of reference surface (base):	2 µm
Flatness of measuring face (rod):	0.3 µm
Parallelism between measuring face (rod) and reference surface (base):	(4+L/50) µm L = max. measuring length (mm)
Measuring surfaces:	Hardened, precision ground, micro-lap finish
Base:	Hardened tool steel
Battery life:	approx. 2,4 years
Zero/abs:	Yes
DATA(output with cable)/hold(display value):	Yes
Lock function:	Yes
Auto Power OFF after 20 min. non use:	Yes
2 x PRESET:	Yes
Low voltage alarm:	Yes
Data output:	Yes
Digital/Analog:	Digital
Inch-Metric:	Metric

Range:	0 - 150 mm
Base (W x T):	101.6 x 16 mm
Number of rods:	6
Delivered:	Including box, key and 1 battery
Mass:	540 g
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring span:	25 mm
Spindle pitch:	0,5 mm with spindle lock
Zero point errors of rods:	±4 µm (0-150 mm) ±6 µm (0-300 mm)
Micrometer Head Feed (0-25 mm) (excluding quantizing error):	±3 µm
Flatness of reference surface (base):	2 µm
Flatness of measuring face (rod):	0.3 µm
Parallelism between measuring face (rod) and reference surface (base):	(4+L/50) µm L = max. measuring length (mm)
Measuring surfaces:	Hardened, precision ground, micro-lap finish
Base:	Hardened tool steel
Battery life:	approx. 2,4 years
Zero/abs:	Yes
DATA(output with cable)/hold(display value):	Yes
Lock function:	Yes
Auto Power OFF after 20 min. non use:	Yes
2 x PRESET:	Yes
Low voltage alarm:	Yes
Data output:	Yes
Digital/Analog:	Digital
Inch-Metric:	Metric

Note: Please read description carefully. Do not base your order on the picture presented.
