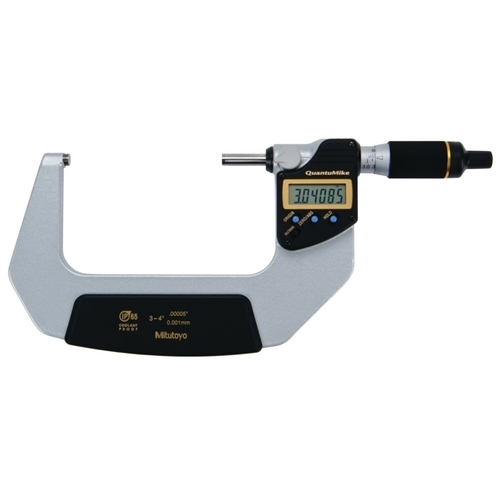

Buy Mitutoyo 293-188-30, Digital Micrometereter QuantuMike Metric, 3-4"

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Features:

Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.
Extraordinary battery life of 2,4 years
Outstanding accuracy
Ratched thimble mechanism ensures easy single-handed or stand operation.
Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Accuracy:	±0,0001"
Data output:	No
Mass:	620 g
Flatness:	0,000012"
Maximum Permissible Error J MPE:	±1E-4"
Measuring surfaces:	Carbide-tipped, micro-lap finish
Digital step:	0,00005"/0,001 mm
Battery life:	Approx. 2,4 years
hold:	Yes
origin (until 100 mm):	Yes
Zero/abs:	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Scale:	Thimble and sleeve satin chrome finish, ø19,3 mm
Parallelism:	0,00008"
Measuring spindle:	With spindle lock, ø6.35mm, spindle pitch 2 mm

Accuracy:	±0,0001"
Data output:	No
Mass:	620 g
Flatness:	0,000012"
Maximum Permissible Error J MPE:	±1E-4"
Measuring surfaces:	Carbide-tipped, micro-lap finish
Digital step:	0,00005"/0,001 mm
Battery life:	Approx. 2,4 years
hold:	Yes
origin (until 100 mm):	Yes
Zero/abs:	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Scale:	Thimble and sleeve satin chrome finish, ø19,3 mm
Parallelism:	0,00008"
Measuring spindle:	With spindle lock, ø6.35mm, spindle pitch 2 mm

Note: Please read description carefully. Do not base your order on the picture presented.
