Mitutoyo 129-112 Depth 0-150mm Micrometer with 63mm Base
Condition:
Brand New
Brand New $276.30 /Each
$294.00 You save $17.70 6%
Notification
This product will be drop-shipped directly from the manufacturer. We will provide you with the manufacturer's lead time once advised.
Manufacturer warranty Description

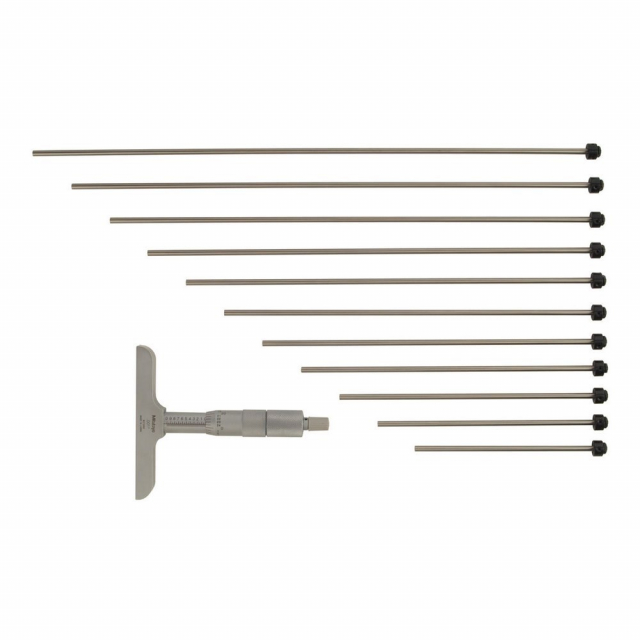

Mitutoyo, 129-112, Depth 0-150mm Micrometer with Interchangeable Rods, 63mm Base
Features:
- Rod diameters are 4mm
- Measuring rod clamps provide added measurement stability

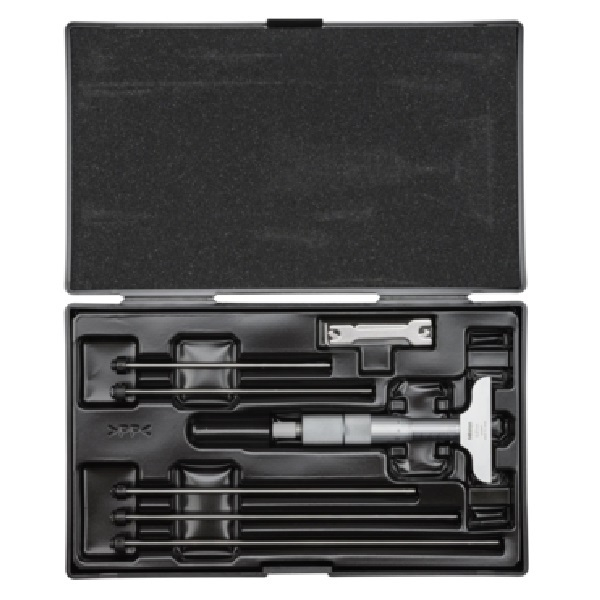

- Supplied with a fitted plastic case
The Mitutoyo interchangeable rod-type depth micrometer offers great versatility for measuring a range of depths with the included extension rods. The depth micrometer's rod contact measuring points are lapped and carbide tipped for incredible flatness and better precision. The ratchet stop mechanism provides uniform pressure for precise, repeatable measurements.
Technical details
Main features
- Scale Thimble and sleeve satin chrome finish Dia.18 mm
- Graduation 0,01 mm
- Base Hardened tool steel
- Measuring Face Hardened, precision ground, micro-lap finish
- Base Size (mm) 63
- Measuring Force 5-10 N
- Number of Rods 6
- Mass 370 g
- Digital/Analog Analog
- Inch-Metric Metric
- Measuring Span 25 mm
- Spindle Pitch 0,5 mm
- Micrometer Head Feed (0-25 mm) ±3 µm
- Zero Point Errors of Rods ±4 µm
- Flatness Base 1.3 µm
- Flatness Rod 0,3 µm
- Parallelism Base/Rod 7 µm
