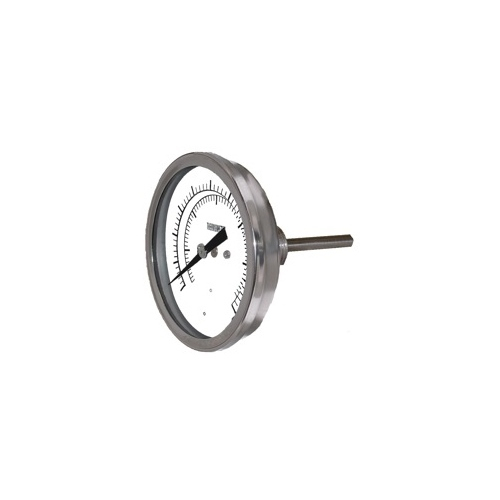

Midwest Control TGB20-500P25 2" Temperature Gauge, 50/500F, 2-1/2"

Midwest Control, TGB20-500P25, 2" Temperature Gauge, 50/500F Back Mount 2-1/2" Stem

Features:

• Features Anti-Vibration Design and Anti-Parallax Dial
• Fast Response to Temperature Change
• Case Stainless Steel, Hermetically Sealed
• Stem 316 Stainless Steel Stem
• Connection Fixed Back Mount 90 Degree
• Lens Glass
• Scale Dual Fahrenheit & Celsius
• Accuracy 1% Full Scale Per Grade A, ASME B40.3
• Ambient Temperature -30 F to 180 F
• External Adjustment Zero Reset Screw
• Design Meets or Exceed ASME B40.3 Thermometer Standard
• Contact Midwest Control for Other Temperature Ranges
• Monitor process temperatures with this thermometer. The thermometer uses a bimetallic sensing element, which reacts measurably and consistently with temperature change.
• The sensing element is made of two different metals welded together to form a coil which is enclosed in a stainless steel stem. When the stem is exposed to temperature change the coil expands or contracts and the pointer moves accordingly.
