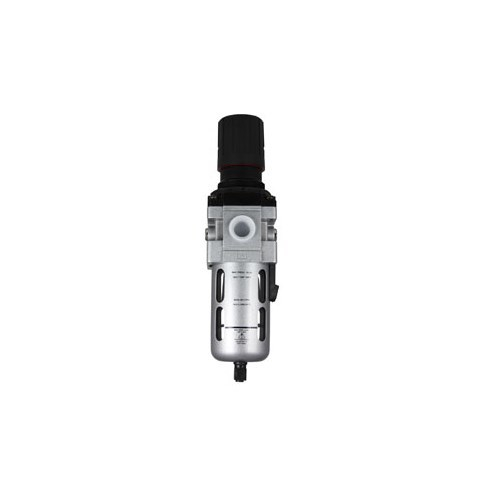

Midwest Control MCGFRC149234C-S 3/8" 77 SCFM Filter/Regulator, Bowl

Midwest Control, MCGFRC149234C-S, 3/8" 77 SCFM Filter/Regulator Poly Bowl with Guard and 40M Element 7-140 PSI

Features:

• The Combination Filter Regulator is a Compact Unit Designed to Separate Dust, Dirt, Moisture and Other Contaminants from the Compressed Air Line Combined with a Regulator to Maintain a Steady Outlet Pressure Unaffected by Inlet Pressure Fluctuations
• The Filter has a Die Cast Aluminum Filter Head, Polycarbonate Bowl and Steel Bowl Guard with a High Performance 40 Micron Sintered Bronze Element
• Designed with a Separator and Shield for Efficient Moisture Separation
• Press Type Manual Drain with "Night Time Drain" Feature which Automatically Drains when the Pressure Drops Below 11.6 PSI
• The Relieving Regulator is Aluminum Die Cast and has a Non-Raising "Press to Lock" Knob for Locking at Any Set pressure
• The Regulator Works on a Diaphragm Operated, Relieving Type Mechanism with Pressure Compensated Balance Poppet
• Red Ring Provides Visual Check for Regulator in the Unlocked Position
• 2-1/8" NPT Gauge Ports
• Maximum Supply Pressure 140 PSIG
• Maximum Temperature 140 F
• Replacement 40 Micron Element F582025
• Mounting Brackets
• Mounting Bracket A2C02
• Modular Connector with Wall Bracket and Spacer A2W02
• Spacer Only A2S02
• Piping Adapter A2P05
• 5 Micron Element F582026
• Fully Automatic Drain A2D02
