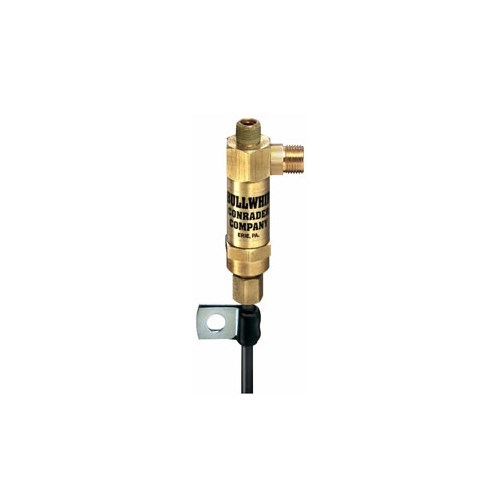

Midwest Control BWTCI48-0817 48" Throttle Control with Clamp 8 HP

Midwest Control, BWTCI48-0817, 48" Throttle Control with Grooved Clamp Up to 8 HP

Conrader Cable Throttle Controls are Designed to Control the Engine Speed of Gasoline and Diesel Engine Driven Compressors. The Throttle Control Keeps the Engine at the Operational Speed Until It Receives a Pressure Signal, It Then Throttles Down the Engine Until the Pressure Signal is Released. Throttle Controls Must be Used in Conjunction With a Pilot Valve Which Controls the Pressure Signal. The Cable Throttle Control is Mounted Directly to the Pilot and a Solid Cable Runs from the Throttle Control to the Throttle Arm on the Engine.

Features:

• 1/8 MPT Pilot Connection
• Construction Brass Body and Piston, Stainless Steel Wire, Corrosion Resistant Molybdenum Filled
• Nylon Casing and Viton O Ring Seal
• Designed for Systems with Intake Unloaders Up to 8Hp
• Includes 0817 Grooved Clamp
• Maximum Pressure 500 PSI
• Minimum Pressure 40 PSI
• Maximum Temperature Operating Mechanism 450 F
• Everseal 483 Sealant Standard
