Buy Main Filter BEH84001610N, MF0062947 Filter, Beta Ratio 200/9.9 - Prime Buy

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Beta Ratio:: Beta Ratio: 200/9.9

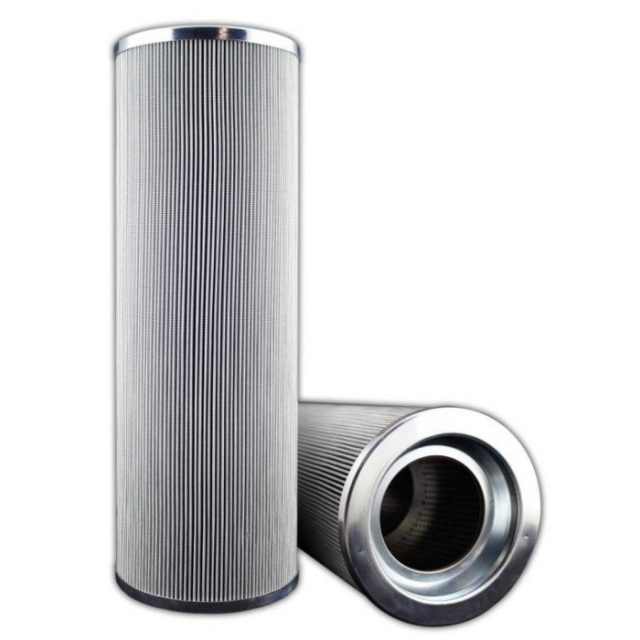

Main Filter, BEH84001610N, MF0062947 Hydraulic Filter, Beta Ratio 200/9.9

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Type	Hydraulic
Element Type	Return Line
Product Media	Glass
Height Inch	16.810
OD Top Inch	5.980
ID Top Inch	3.290
OD Bottom Inch	5.980
ID Bottom Inch	3.290
Collapse Pressure (PSI)	145
Operating Temp Min (F)	-13
Operating Temp Max (F)	248
Capacity (GR)	277
Filter Area (SQ IN)	2832
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/9.9
Beta Ratio 2	1000/12.4
Micron 1	10
Weight (lbs)	6.6

Product Details

Type	Hydraulic
Element Type	Return Line
Product Media	Glass
Height Inch	16.810
OD Top Inch	5.980
ID Top Inch	3.290
OD Bottom Inch	5.980
ID Bottom Inch	3.290
Collapse Pressure (PSI)	145
Operating Temp Min (F)	-13
Operating Temp Max (F)	248
Capacity (GR)	277
Filter Area (SQ IN)	2832
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/9.9
Beta Ratio 2	1000/12.4
Micron 1	10
Weight (lbs)	6.6

Note: Please read description carefully. Do not base your order on the picture presented.
