Buy Main Filter 01253096, MF0060364 Hydraulic Filter, Capacity (GR) 68 - Prime Buy

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Capacity:: Capacity: 68 GR

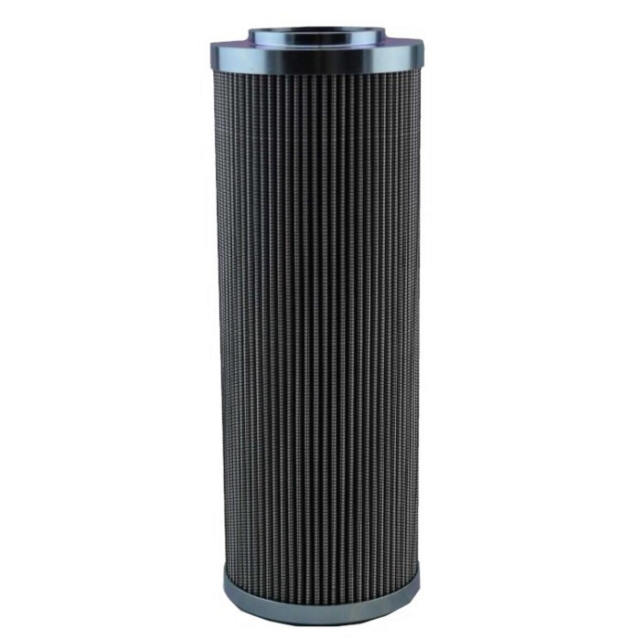

Main Filter, 01253096, MF0060364 Hydraulic Filter, Pressure Line Capacity (GR) 68

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Type	Hydraulic
Element Type	Pressure Line
Product Media	Glass
Height Inch	9.960
OD Top Inch	3.560
ID Top Inch	1.900
OD Bottom Inch	3.560
Collapse Pressure (PSI)	3045
Operating Temp Min (F)	-13
Operating Temp Max (F)	248
Capacity (GR)	68
Filter Area (SQ IN)	723
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/5.4
Beta Ratio 2	1000/7.7
Micron 1	5
Weight (lbs)	3.696

Product Details

Type	Hydraulic
Element Type	Pressure Line
Product Media	Glass
Height Inch	9.960
OD Top Inch	3.560
ID Top Inch	1.900
OD Bottom Inch	3.560
Collapse Pressure (PSI)	3045
Operating Temp Min (F)	-13
Operating Temp Max (F)	248
Capacity (GR)	68
Filter Area (SQ IN)	723
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/5.4
Beta Ratio 2	1000/7.7
Micron 1	5
Weight (lbs)	3.696

Note: Please read description carefully. Do not base your order on the picture presented.
