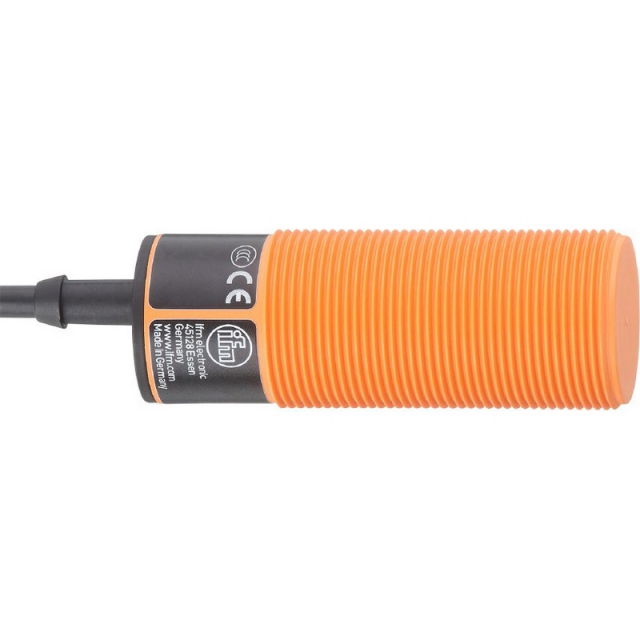

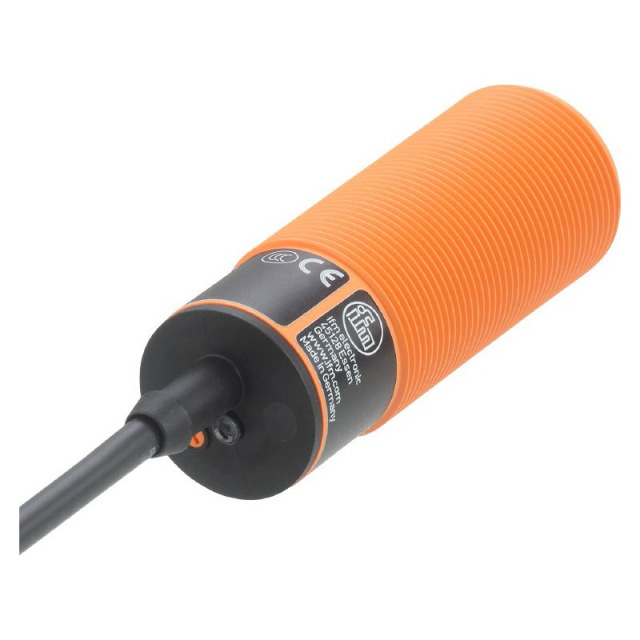

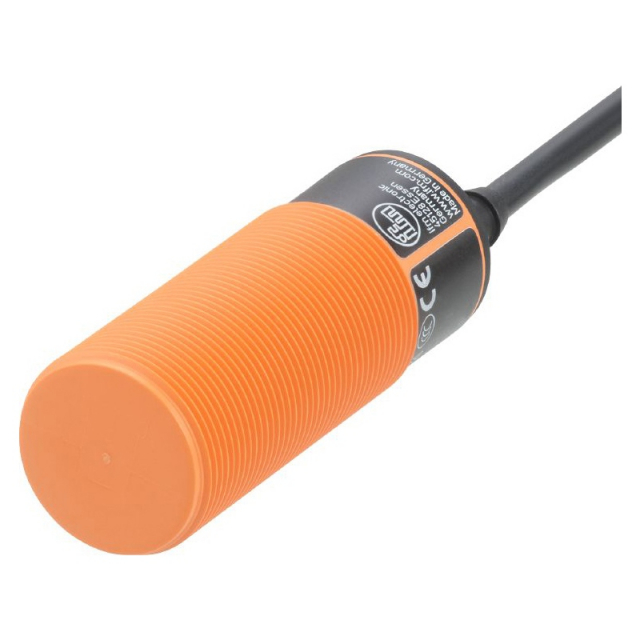

Buy IFM KI0065, Normally Open Capacitive Sensor with IP 65 Protection

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Output Function:: Output Function: Normally Open

Features:

Easy setting of the sensing range via potentiometer
With combined AC/DC output stage
Two-wire technology
High noise immunity
For position detection or level monitoring

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Product Characteristics

Output Function

Normally open

Sensing Range [mm]

Housing

Threaded type

Dimensions [mm]

M30 x 1.5 / L = 81

Electrical Data

Operating Voltage [V]

20 - 250 AC/DC

Protection Class

Reverse Polarity Protection

Outputs

Output Function

Normally open

Maximum Voltage Drop Switching Output DC [V]

Maximum Voltage Drop Switching Output AC [V]

Minimum Load Current [mA]

Maximum Leakage Current [mA]

2.5 (250 V AC)
1.7 (110 V AC)
1.5 (24 V DC)

Permanent Current Rating of Switching Output AC [mA]

200; (for UL application: 250 / 100 DC)

Permanent Current Rating of Switching Output DC [mA]

200; (for UL application: 250 AC / 100 DC)

Short-Time Current Rating of Switching Output [mA]

1500; (20 ms / 0,5 Hz)

Switching Frequency AC [Hz]

Switching Frequency DC [Hz]

Short-Circuit Proof

Overload Protection

Monitoring Range

Sensing Range [mm]

Sensing Range Adjustable

Yes

Factory Setting Sensing Range [mm]

Real Sensing Range Sr [mm]

15 ± 10 %

Operating Distance [mm]

0 - 12.1

Accuracy / Deviations

Correction Factor

Glass: 0.4
Water: 1
Ceramics: 0.2
PVC: 0.2

Hysteresis [% of Sr]

1 - 15

Switch-Point Drift [% of Sr]

-15 - 15

Operating Conditions

Ambient Temperature [°C]

-25 - 70

Protection

IP 65

Increased Immunity

Yes; (Increased Immunity to conducted radio frequency interference)

MTTF [Years]

489

Mechanical Data

Weight [g]

359.9

Housing

Threaded type

Mounting

Non-flush mountable

Dimensions [mm]

M30 x 1.5 / L = 81

Thread Designation

M30 x 1.5

Material

PBT

Electrical Connection

Required Protection

Miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Product Details

Product Characteristics

Output Function

Normally open

Sensing Range [mm]

Housing

Threaded type

Dimensions [mm]

M30 x 1.5 / L = 81

Electrical Data

Operating Voltage [V]

20 - 250 AC/DC

Protection Class

Reverse Polarity Protection

Outputs

Output Function

Normally open

Maximum Voltage Drop Switching Output DC [V]

Maximum Voltage Drop Switching Output AC [V]

Minimum Load Current [mA]

Maximum Leakage Current [mA]

2.5 (250 V AC)
1.7 (110 V AC)
1.5 (24 V DC)

Permanent Current Rating of Switching Output AC [mA]

200; (for UL application: 250 / 100 DC)

Permanent Current Rating of Switching Output DC [mA]

200; (for UL application: 250 AC / 100 DC)

Short-Time Current Rating of Switching Output [mA]

1500; (20 ms / 0,5 Hz)

Switching Frequency AC [Hz]

Switching Frequency DC [Hz]

Short-Circuit Proof

Overload Protection

Monitoring Range

Sensing Range [mm]

Sensing Range Adjustable

Yes

Factory Setting Sensing Range [mm]

Real Sensing Range Sr [mm]

15 ± 10 %

Operating Distance [mm]

0 - 12.1

Accuracy / Deviations

Correction Factor

Glass: 0.4
Water: 1
Ceramics: 0.2
PVC: 0.2

Hysteresis [% of Sr]

1 - 15

Switch-Point Drift [% of Sr]

-15 - 15

Operating Conditions

Ambient Temperature [°C]

-25 - 70

Protection

IP 65

Increased Immunity

Yes; (Increased Immunity to conducted radio frequency interference)

MTTF [Years]

489

Mechanical Data

Weight [g]

359.9

Housing

Threaded type

Mounting

Non-flush mountable

Dimensions [mm]

M30 x 1.5 / L = 81

Thread Designation

M30 x 1.5

Material

PBT

Electrical Connection

Required Protection

Miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
