IFM KG5079 Normally Closed Capacitive Sensor with 8mm Sensing Range
Condition:
Brand New
Brand New $252.20 /Each
Manufacturer warranty Description

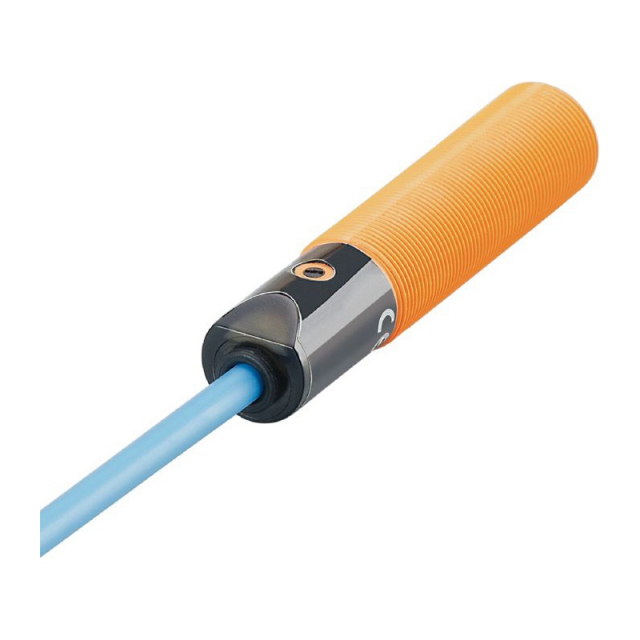

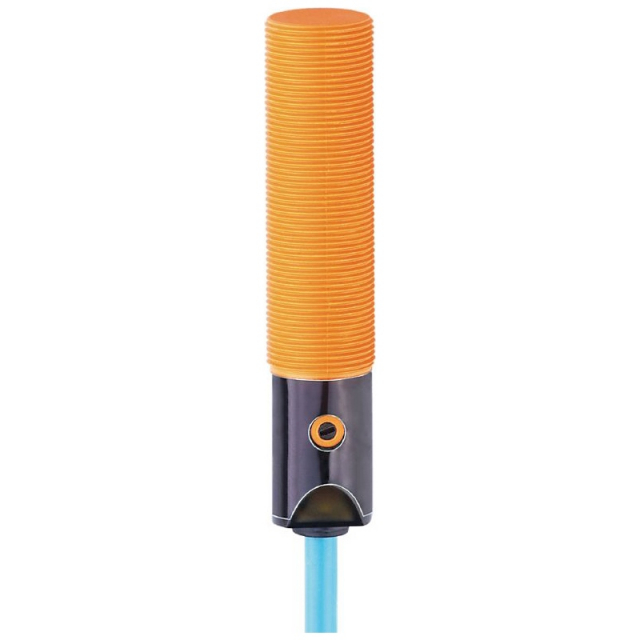

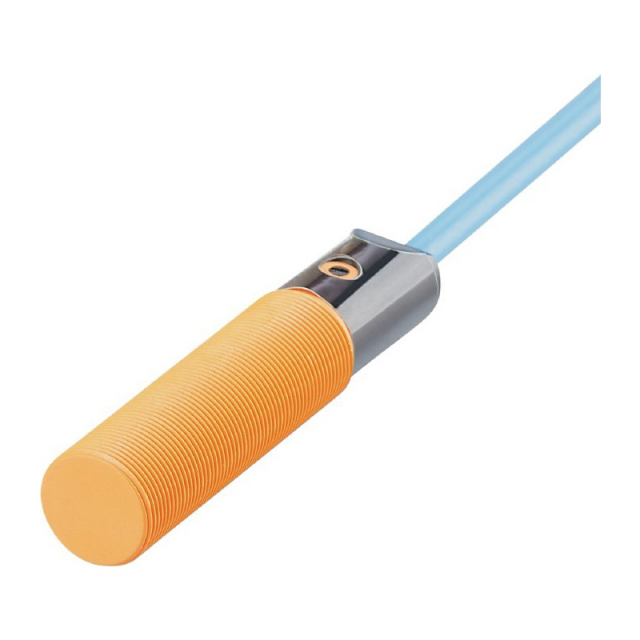

IFM, KG5079, Normally Closed Capacitive Namur Sensor with 8mm Sensing Range
Features:
- For applications in hazardous areas
- Easy setting of the sensing range via potentiometer
- Clearly visible indication of the switching status
- For position detection or level monitoring
For more information, please see
Data Sheet
Technical details
Main features
- Material PBT
- Mounting Non-flush mountable
- Protection Class II
- Output Function Normally Closed
- Electrical Design NAMUR
- Sensing Range (mm) 8
- Protection IP 67
- Housing Threaded type
- Supply voltage DC [V] 7.5 - 15
- Current Consumption [mA] <1; (disabled; conductive: >2,2)
- MTTF [Years] 503
- Weight [g] 320
- ATEX marking II 1G Ex ia IIB T4 Ga
- Dimensions [mm] M18 x 1 / L = 84
- Ambient Temperature [°C] -20 - 60
- Nominal Voltage DC [V] 8.2; (1kΩ)
- Thread Designation M18 X 1
- Approval BVS 13 ATEX E009 X; IECEx BVS 13.0015 X
- Switching Frequency DC [Hz] 4
- Maximum Internal Capacitance [nF] 11.5
- Sensing Range [mm] 8
- Sensing Range Adjustable Yes
- Factory Setting Sensing Range [mm] 8
- Real Sensing Range Sr [mm] 8 ± 10 %
- Correction Factor Glass: 0.4 Water: 1 Ceramics: 0.2 PVC: 0.2
- Hysteresis [% of Sr] 1 - 15
- Switch-Point Drift [% of Sr] -15 - 15
- Switching Amplifiers Connection to certified intrinsically safe circuits with the Maximum values: U = 15 V / I = 50 mA / P = 120 mW
- Connection at Circuit Amplifier Yes
- Maximum Internal Inductance [μH] 3
