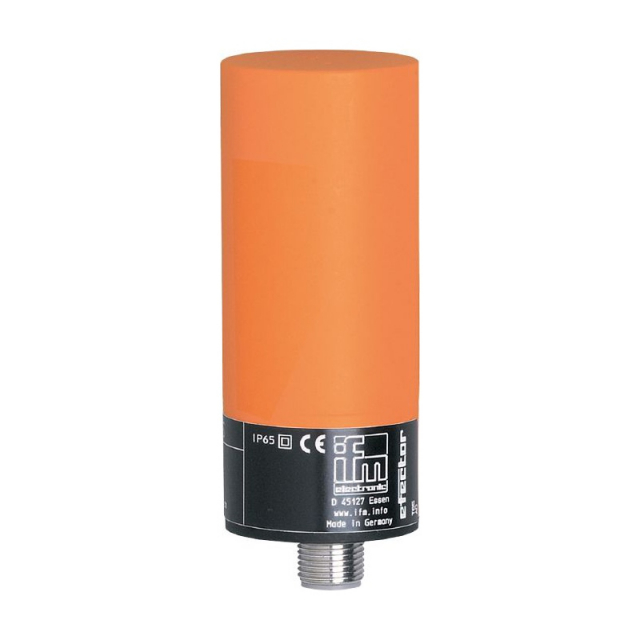

Buy IFM KB5062, Normally Open Capacitive Sensor with 20mm Sensing Range

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

High noise immunity
Easy setting of the sensing range via potentiometer
Smooth plastic housing to protect against deposits
For position detection or level monitoring

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Product Characteristics

Electrical Design

PNP

Output Function

Normally open

Sensing Range [mm]

Housing

Tubular

Dimensions [mm]

Dia. 34 / L = 93

Electrical Data

Operating Voltage [V]

10 - 36 DC

Current Consumption [mA]

13; (24 V)

Protection Class

Reverse Polarity Protection

Yes

Outputs

Electrical Design

PNP

Output Function

Normally open

Maximum Voltage Drop Switching Output DC [V]

2.5

Permanent Current Rating of Switching Output DC [mA]

250

Switching Frequency DC [Hz]

Short-Circuit Proof

Yes

Overload Protection

Yes

Monitoring Range

Sensing Range [mm]

Sensing Range Adjustable

Yes

Factory Setting Sensing Range [mm]

Real Sensing Range Sr [mm]

20 ± 10 %

Operating Distance [mm]

0 - 16.2

Accuracy / Deviations

Correction Factor

Glass: 0.4
Water: 1
Ceramics: 0.2
PVC: 0.2

Hysteresis [% of Sr]

1 - 15

Switch-Point Drift [% of Sr]

-15 - 15

Operating Conditions

Ambient Temperature [°C]

-25 - 70

Protection

IP 65

Increased Immunity

Yes; (Increased Immunity to conducted radio frequency interference)

MTTF [Years]

778

Mechanical Data

Weight [g]

169.5

Housing

Tubular

Mounting

Non-flush mountable

Dimensions [mm]

Dia. 34 / L = 93

Material

PBT

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Product Characteristics

Electrical Design

PNP

Output Function

Normally open

Sensing Range [mm]

Housing

Tubular

Dimensions [mm]

Dia. 34 / L = 93

Electrical Data

Operating Voltage [V]

10 - 36 DC

Current Consumption [mA]

13; (24 V)

Protection Class

Reverse Polarity Protection

Yes

Outputs

Electrical Design

PNP

Output Function

Normally open

Maximum Voltage Drop Switching Output DC [V]

2.5

Permanent Current Rating of Switching Output DC [mA]

250

Switching Frequency DC [Hz]

Short-Circuit Proof

Yes

Overload Protection

Yes

Monitoring Range

Sensing Range [mm]

Sensing Range Adjustable

Yes

Factory Setting Sensing Range [mm]

Real Sensing Range Sr [mm]

20 ± 10 %

Operating Distance [mm]

0 - 16.2

Accuracy / Deviations

Correction Factor

Glass: 0.4
Water: 1
Ceramics: 0.2
PVC: 0.2

Hysteresis [% of Sr]

1 - 15

Switch-Point Drift [% of Sr]

-15 - 15

Operating Conditions

Ambient Temperature [°C]

-25 - 70

Protection

IP 65

Increased Immunity

Yes; (Increased Immunity to conducted radio frequency interference)

MTTF [Years]

778

Mechanical Data

Weight [g]

169.5

Housing

Tubular

Mounting

Non-flush mountable

Dimensions [mm]

Dia. 34 / L = 93

Material

PBT

Note

Note: Please read description carefully. Do not base your order on the picture presented.
