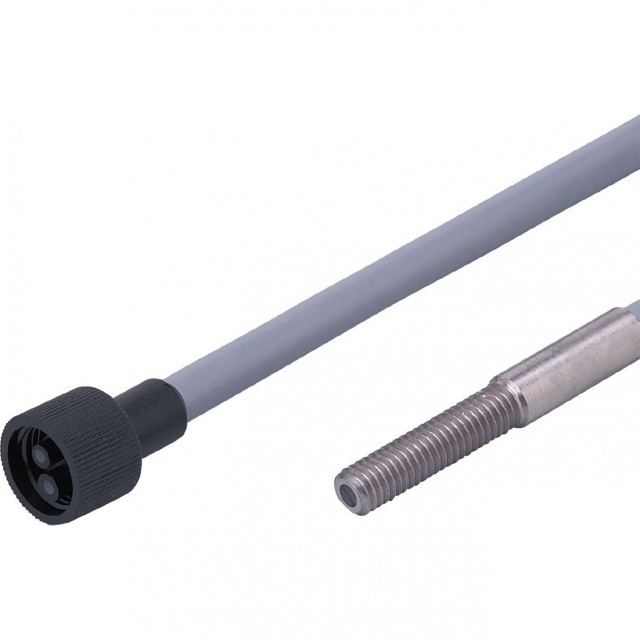

Buy IFM E20523, 1500mm Fiber Optic Diffuse Reflection Sensor

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Features:

For more information, please see pdf file Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Function Principle	Diffuse reflection sensor
Monitoring Range
Range with Fiber Optic Amplifier Type	OKF; OUF
OKF
Range Fiber Optics [mm]	36
OUF
Range Fiber Optics [mm]	36
Operating Conditions
Ambient Temperature [°C]	-20 - 150
Mechanical Data
Weight [g]	101.5
Version of Sensing Head	Straight
Sensing Head Thread	M6
Sensing Head Diameter [mm]	7
Sensing Head Length [mm]	45
Total Length [mm]	1500
Minimum Bending Radius [mm]	20
Fiber Material	Glass
Fiber Head Material	Stainless steel (1.4305 / 303)
Fiber Sheath Material	Metal silicone

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Function Principle	Diffuse reflection sensor
Monitoring Range
Range with Fiber Optic Amplifier Type	OKF; OUF
OKF
Range Fiber Optics [mm]	36
OUF
Range Fiber Optics [mm]	36
Operating Conditions
Ambient Temperature [°C]	-20 - 150
Mechanical Data
Weight [g]	101.5
Version of Sensing Head	Straight
Sensing Head Thread	M6
Sensing Head Diameter [mm]	7
Sensing Head Length [mm]	45
Total Length [mm]	1500
Minimum Bending Radius [mm]	20
Fiber Material	Glass
Fiber Head Material	Stainless steel (1.4305 / 303)
Fiber Sheath Material	Metal silicone

Note: Please read description carefully. Do not base your order on the picture presented.
