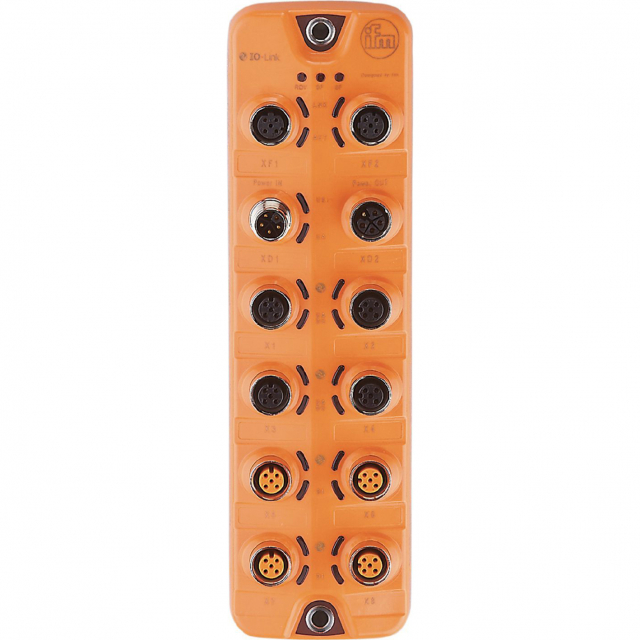

| Daisy-Chain Function | Voltage Supply; fieldbus interface |
| Electrical Data |
| Operating Voltage [V] | 20 - 30 DC; (US; to SELV/PELV) |
| Current Consumption [mA] | 300 - 3900; (US) |
| Protection Class | III |
| Additional Voltage Supply [V] | 20 - 30 DC; (UA) |
| Actuator Supply UA |
| Maximum Current Load Total [A] | 8 |
| Current Rating per Port [A] | 2; (adjustable: 0 - 2; Factory setting: 2) |
| Sensor Supply US |
| Maximum Current Load Total [A] | 3.6 |
| Current Rating per Port [A] | 2; (adjustable: 0 - 2; Factory setting: 0,45) |
| Inputs / Outputs |
| Total Number of Inputs and Outputs | 16; (configurable) |
| Number of Inputs and Outputs | - Number of Digital Inputs: 12
- Number of Digital Outputs: 12
|
| Inputs |
| Number of Digital Inputs | 12; (IO-Link Port Class A: 4 x 2; IO-Link Port Class B: 4 x 1) |
| Switching Level High [V] | 11 - 30 |
| Switching Level Low [V] | 0 - 5 |
| Digital Inputs Protected Against Short Circuits | Yes |
| Outputs |
| Number of Digital Outputs | 12; (IO-Link Port Class A: 4 x 1; IO-Link Port Class B: 4 x 2) |
| Short-Circuit Proof | Yes |
| Actuator Supply UA |
| Maximum Current Load per Output [mA] | 2000 |
| Sensor Supply US |
| Maximum Current Load per Output [mA] | 2000 |
| Interfaces |
| Communication Interface | Ethernet; IO-Link |
| Ethernet - ProfiNet |
| Transmission Standard | 100Base-TX |
| Transmission Rate | 100 MBit/s |
| Protocol | ProfiNet |
| IO-Link Master |
| Transmission Type | - COM1 (4,8 kBaud)
- COM2 (38,4 kBaud)
- COM3 (230,4 kBaud)
|
| IO-Link Revision | 1.1 |
| Number of Ports Class A | 4 |
| Number of ports class B | 4 |
| Operating Conditions |
| Ambient Temperature [°C] | -25 - 60 |
| Storage Temperature [°C] | -25 - 85 |
| Maximum Relative Air Humidity [%] | 90 |
| Protection | |
| Protection Rating (NEMA 250) | 6P |
| Degree of Soiling | 2 |
| MTTF [years] | 43 |
| Mechanical Data |
| Weight [g] | 412.1 |
| Material | - Housing: PA orange
- Socket: brass nickel-plated
|
| Sealing Material | FKM |
| Electrical Connection - Ethernet |
| IN / OUT XF1, XF2 | Connector: M12; coding: D; sealing: FKM |
| Electrical Connection - Process Connection |
| IO-Link Port Class B X1 - X4 | Connector: M12; coding: A; sealing: FKM |
| Electrical Connection - Voltage Supply IN |
| XD1 | Connector: M12; coding: L |
| Electrical Connection - Voltage Supply OUT |
| XD2 | Connector: M12; coding: L; sealing: FKM |
