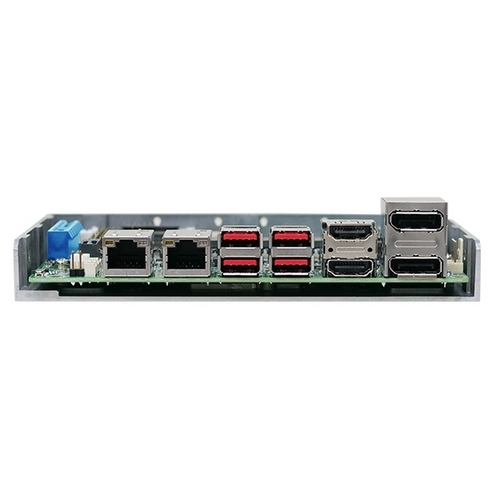

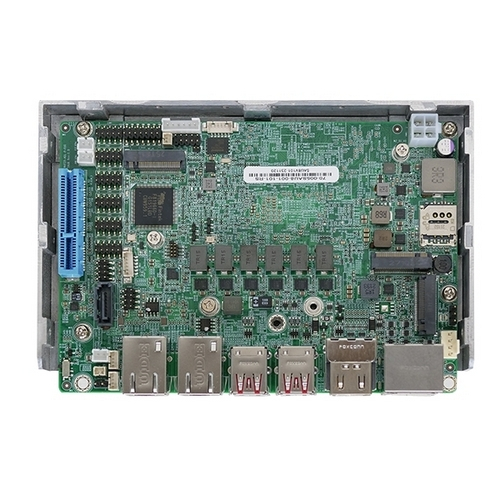

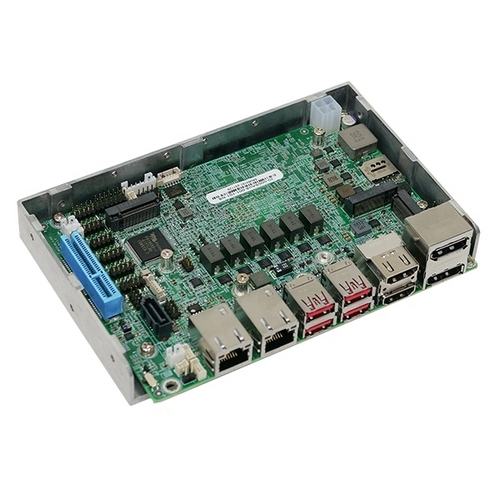

IEI, WAFER-ADL-P-i5C-R10, 3.5 Single Board Computer Supports Intel® Alder Lake-P Core™ i5-1235U Proccessor, with 8GB LPDDR4x Memory on Board Default, with DP, HDMI, Dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM,PCIe x4 for Riser Card and RoHS
WAFER-ADL-P-i3C-R10 Includes Only:
- 1 x WAFER-ADL-P single board computer
- 1 x SATA cable
- 1 x Quick Installation Guide
Features:
- Support 12th Intel® mobile Alder Lake-P Core™ i5-1235U on board SoC
- Support on-board LPDDR4x 3200 MHz 8GB memory, Up to 32GB
- Support quadruple independent display via two HDMI™ and two DP
- Support PCIe X4, M.2 M key, M.2 B key and M.2 A key expansion
- Suport two 2.5GbE LAN with I225V/I226V
- Well-Design IHCC Thermal Solution
High-performance 12th/13th Gen Intel Core Mobile Processors
The WAFER-ADL-P Series is powered by the 12th Gen Intel Core™ i5-1235U Mobile Processor for powerful 10-core performance with efficient system power consumption. Furthermore, it leverages the breakthrough Performance Hybrid Architecture for dramatic increases to single- and multi-threaded performance combined with graphics density and AI acceleration in small form factor but high-performance designs.
4K Quadruple Independent Displays
The WAFER-ADL-P integrates Intel® Iris® Xe Graphics, delivering up to 2.47x faster graphics performance compared to 11th Gen Intel Core processors. With Intel® Iris® Xe Graphics, the board can feature up to 96 graphics EUs and also provide up to four concurrent 4K independent displays. This is ideal for video wall and surveillance applications.
PCIe x4 Slot Allows Extensive I/O and Function Expansion
Outwards-facing Expansions
Two PCIe x1 / One PCIe x2
The outwards-facing riser card, NWR-L2S, enables the connection of up to two outwards-facing PCIe x1 slots via one PCI Express interface. Although may take up more space, it can help enhance the airflow and heat transfer within the system. It is ideal for the chassis that is wide enough for the expansion card to be placed.
Inwards-facing Expansions
Two PCIe x1 / One PCIe x2
The inwards-facing riser card, NWR-R2S, enables the connection of up to two inwards-facing PCIe x1 slots via one PCI Express interface. It is suitable for installation where space is limited. With higher height to increase spacing between boards, it can ensure efficient heat dissipation for space-constrained applications.
PCIe x4 Interface Card Expansion
The PCIe Gen3 x4 (x2 signal) slot, providing high-speed data transfer rate of up to 2GB/s, allows for additional customization and expansion. Directly installing a PCIe card enables the motherboard to run more complex and challenging tasks at the edge.
Enhanced Stability and Easy Installation
Both of the riser cards can be firmly secured to enhance stability by using the L-shaped bracket, in which screw holes are perfectly matched with those on the side of the heat spreader to make it simple and easy to install.
IEI Heat Conduction Casing (IHCC)
Well-Design Thermal Solution

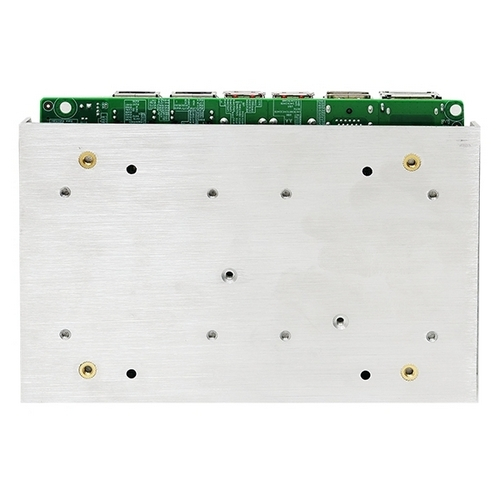

IEI has developed a highly efficient thermal solution for the 3.5" SBC - the IEI Heat Conduction Casing (IHCC). The IHCC effectively enhances heat transfer performance by targeting the primary heat source, thus eliminating the need for designing a separate heat spreader.The IHCC consists of a casing and a heat conduction block that securely fits over the key components where the major heat is generated, ensuring optimal heat transfer.
Diverse Mounting Options
With its well-design thermal casing, the WAFER-ADL-N provides 13 holes on three sides. It can be conveniently mounted on the back panel, door, or DIN rail of a control cabinet. Moreover, installing an extra thermal module for optimal performance in elevated ambient temperatures is a straightforward process.
Fitting Different Mounting Needs
The motherboard is designed to cater to various mounting requirements, such as in embedded system/electrical cabinet, or versatile stacking with thermal modules.
Dual Low-Latency 2.5G LAN Powered by Intel
2.5 GbE allows for different connection speeds ranging from 100 Mbps to 2.5 Gbps on Cat6 and Cat 5e cables, enabling users to fully utilize high-performance network solutions without costly cable upgrades.
M.2 Expansion for Wi-Fi and NVMe Storage
M.2 2230 A Key for Wi-Fi/Bluetooth
The M.2 2230 A key slot carrying with PCIe Gen3 x1 and USB 2.0 signals allows it to adopt the latest Wi-Fi 6E technology. Wi-Fi 6E enhances low latency and supports service levels that are equivalent to 5G networks.
M.2 3042 B Key Slot for LTE & 4G
The M.2 3042 B key slot has PCIe Gen3 x1 and USB 2.0 signals. With an on-board SIM card socket, it become effortless to integrate LTE/4G wireless connectivity. This enables seamless access to fast cellular networks and advanced communication technologies.
M.2-2242/80 M Key for Fast Transfer Speed NVMe SSD Storage
The configurable M.2-2242/80 M key slot supports high-speed PCIe Gen3 x4 3.94 GB/s, making the NVMe SSD twice as fast as PCIe Gen2 x4 with 1.97 GB/s data transfer rates.
For more information, please see
Data Sheet
