IEI, IMBA-H810-R10, ATX Motherboard Supports 22nm LGA 1150 Intel® 4th Generation Core™ i7/i5/i3, Pentium® and Celeron® H81, DDR3, VGA/DVI-D/iDP, Dual Intel ® PCIe GbE, USB3.0, SATA 6Gb/s, HD Audio and RoHS
IMBA-H810-R10 Includes Only:
- 1 x IMBA-H810 single board computer
- 2 x SATA cable
- 1 x I/O shielding
- 1 x Quick Installation Guide

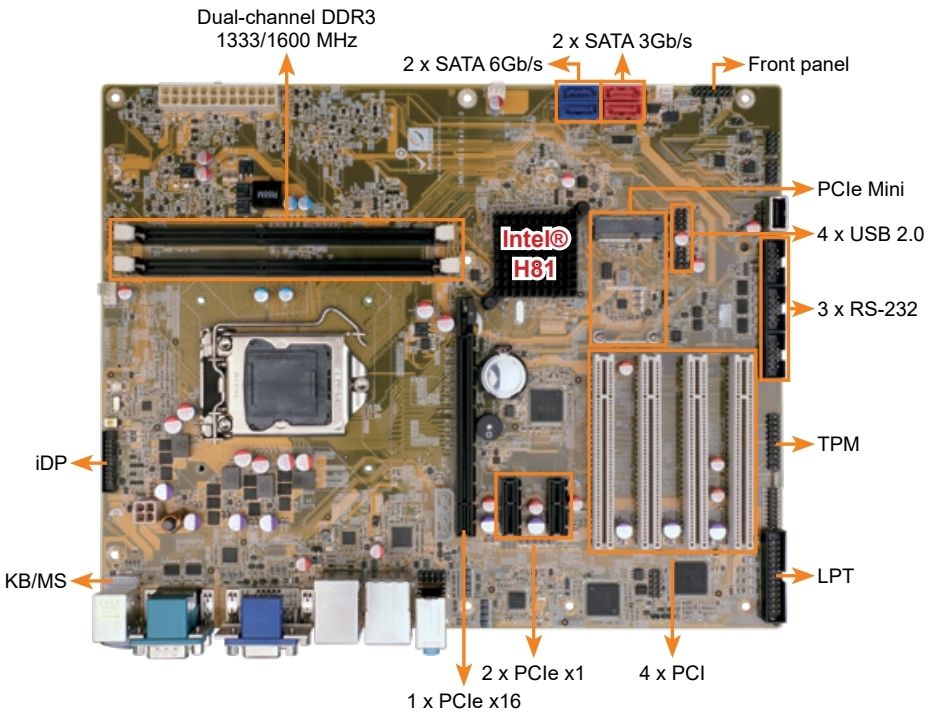

Features:
- 4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
- Dual-channel DDR3-1333/1600 MHz support up to 16 GB
- Intel® HD Graphics technology integrates high-performance graphics and media processing
- USB 3.0, and SATA supported
- TPM V1.2 hardware security function supported by TPM module
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
