Buy Hikvision DS-3E0510P-E, Pro Series 8 Port Gigabit Unmanaged POE Blue

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

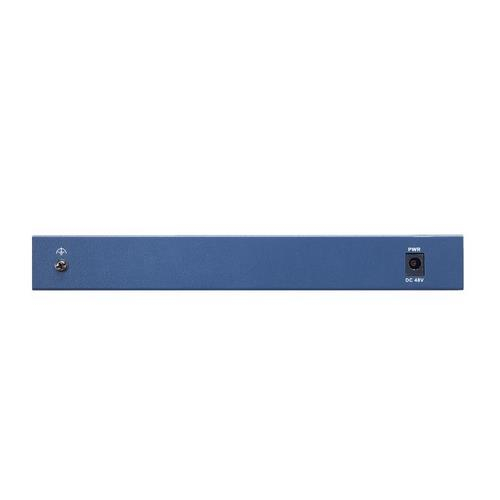

Hikvision, DS-3E0510P-E, Pro Series 8 Port Gigabit Unmanaged POE Switch Blue

Features:

Layer 2 network switch designed for video data transmission
8 x 10/100/1000 Mbps ethernet port, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
IEEE 802.3 af & at high PoE power supply
Store-and-forward switching
Safe and reliable using 6 KV high surge protection
Plug and play ensures simplicity and convenience.

The DS-3E0510P-E is an unmanaged Gigabit PoE switch that requires no configuration and contains up to 24 gigabit ports. It is ideal for managing simple installations that have a large volume of video traffic from high-megapixel IP cameras.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Shell	Metal material, fan-free design
Weight	6.35 lbs (2.88 kg)
Dimensions (W x H x D)	17.3" x 1.7" x 8.7" (440 mm x 44 mm x 220.8 mm)
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Storage Humidity	5% to 95% (no condensation)
Power Supply	100 to 240 VAC, maximum 6.5 A
Max. Power Consumption	400 W
Installation Mode	Desk-Mounted
Ports	8 x gigabit PoE ports, 1 x gigabit; RJ45 port, and 1 × gigabit SFP; fiber optical port
MAC Address Table	4 K
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
Port Type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Forwarding Mode	Store-and-forward switching

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Shell	Metal material, fan-free design
Weight	6.35 lbs (2.88 kg)
Dimensions (W x H x D)	17.3" x 1.7" x 8.7" (440 mm x 44 mm x 220.8 mm)
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Storage Humidity	5% to 95% (no condensation)
Power Supply	100 to 240 VAC, maximum 6.5 A
Max. Power Consumption	400 W
Installation Mode	Desk-Mounted
Ports	8 x gigabit PoE ports, 1 x gigabit; RJ45 port, and 1 × gigabit SFP; fiber optical port
MAC Address Table	4 K
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
Port Type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Forwarding Mode	Store-and-forward switching

Note

Note: Please read description carefully. Do not base your order on the picture presented.
