Buy Gossen M537G, Mavomonitor Luminance Meter Kit, Class B

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Luminance Range (cd/squre m):: Luminance Range (cd/squre m): 0.001 - 19 999

M537G Includes Onky:

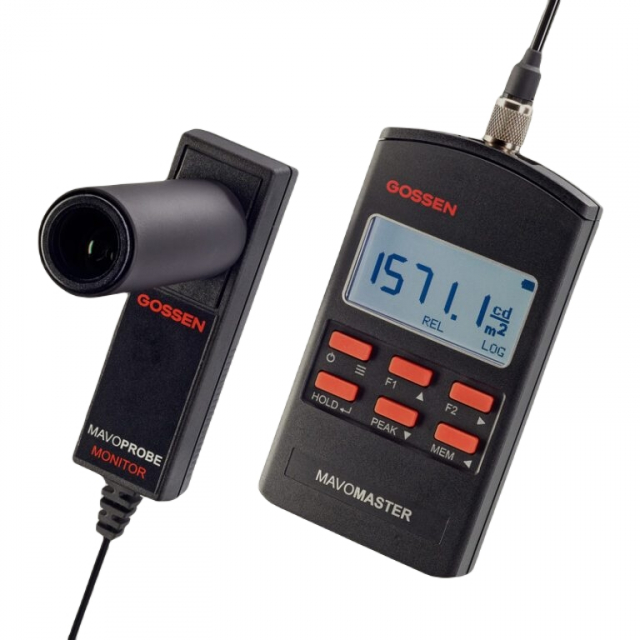

Mavomaster

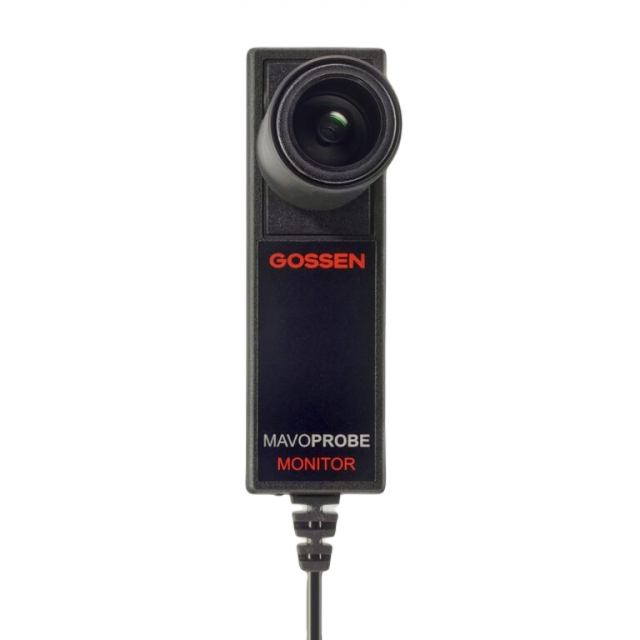

Mavoprobe monitor

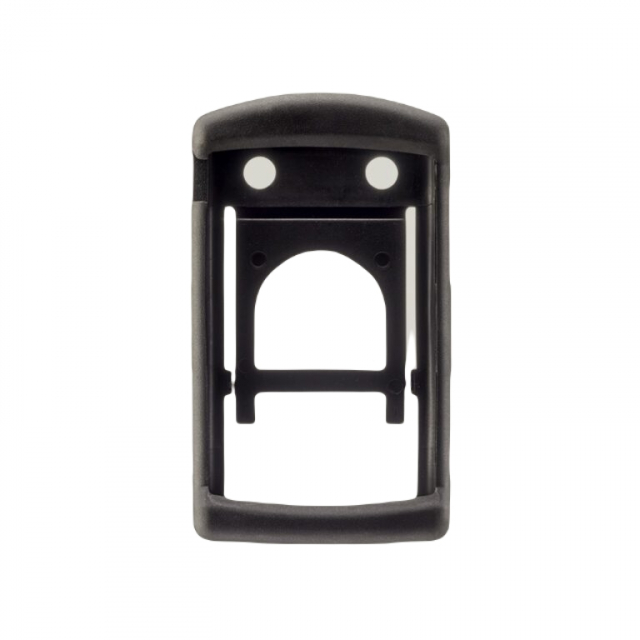

Rubber holster

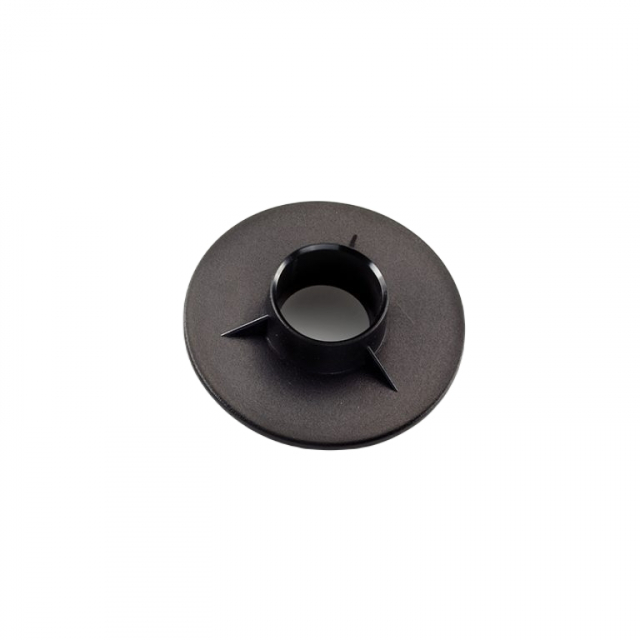

Adapter disc

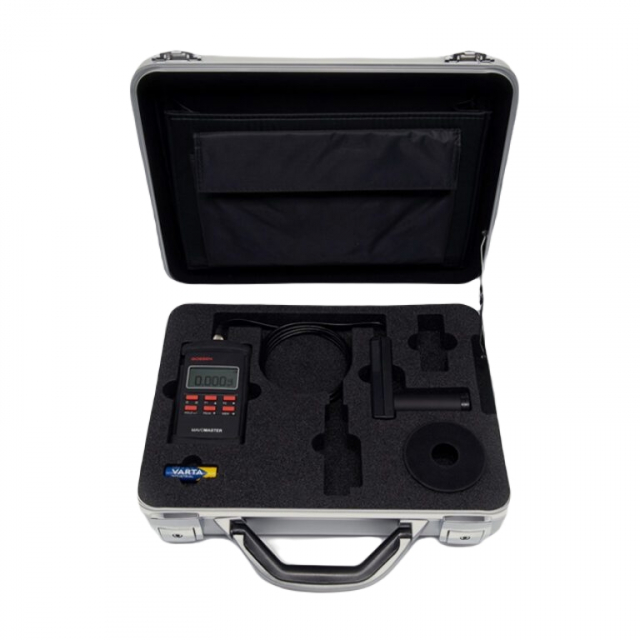

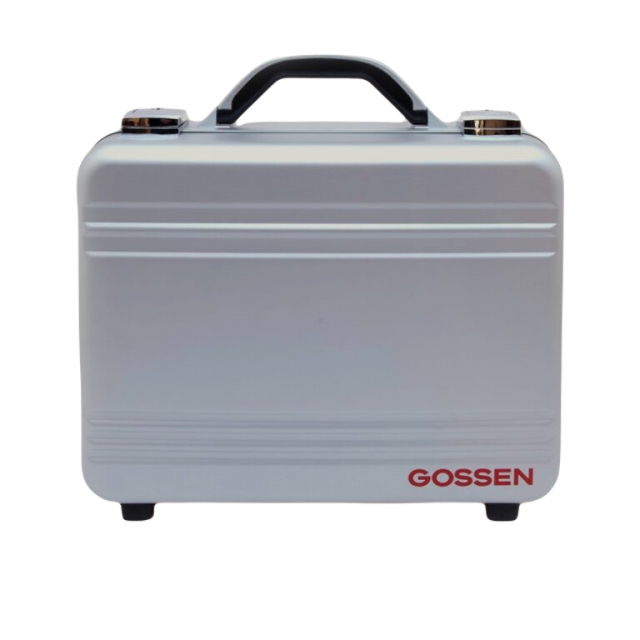

Aluminum case
Mavosoft

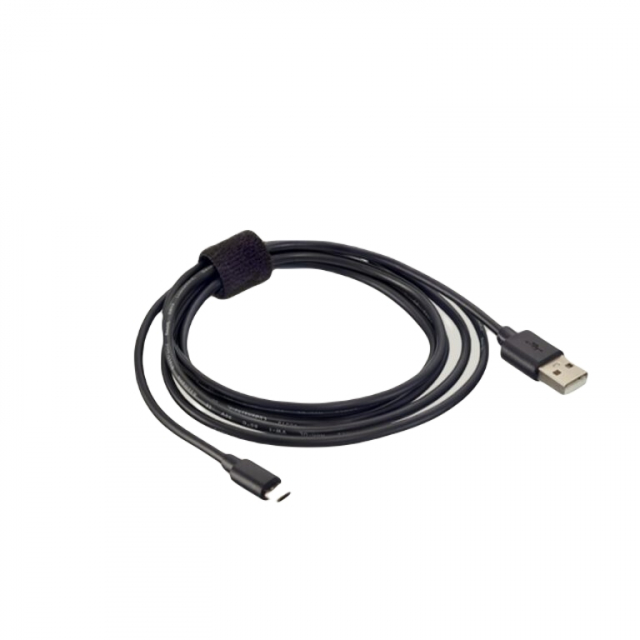

USB cable
Battery
Operating instructions
Final test certificate

Features:

For use in certification and inspection
Relative and integral measurement

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Measuring Functions

Illuminance

0.001 cd/m² - 19 999 cd/m²
0.0001 fL - 1999 fL

Sampling Rate

2/s

Measuring Methode

Contact

Measuring Sensor

Silicon photodiode with V(Λ) filter

Probe with 1/4" Tripod Thread

Yes

Probe Connector Cable

1.5 m, plug-in, Binder series 711 plug, 5-pin

Compliance with the Standards

DIN 5032-7 class B / DIN EN 13032-1 appendix B / ISO CIE 19476

Characteristic Value - V(Λ) Matching (f1'), Typical

< 3 %

Temperature Dependence

< 0.1%, temperature compensated

Accuracy

± 2,5 % rdg ± 1 digit

Power Supply

Batteries

1,5V mignon, type AA

Automatic Battery Monitoring

Yes

Automatic Shutdown

Off, 10 s, 30 s, 1 min, 2 min, 5 min

Battery Service Life

Up to 16 h continuous operation with alkaline manganese battery

Power Supply

via USB

Operation

Display

FSTN graphic display, 128x64, monochrome, 50 mm x 25 mm

Background Illumination

Selectable mode and adjustable brightness

Controls

6 keys, fluorescent lettering

Measured Value Memory

8 GB

Interface

USB 2.0, micro-B socket

Software

Mavosoft

Miscellaneous

Operating Temperature

-10 °C to +50 °C

Dimensions

65 mm x 120 mm x 19 mm (Mavomaster)
33 mm x 115 mm x 27 mm (Mavoprobe)

Weight

210 g including battery

Product Details

Measuring Functions

Illuminance

0.001 cd/m² - 19 999 cd/m²
0.0001 fL - 1999 fL

Sampling Rate

2/s

Measuring Methode

Contact

Measuring Sensor

Silicon photodiode with V(Λ) filter

Probe with 1/4" Tripod Thread

Yes

Probe Connector Cable

1.5 m, plug-in, Binder series 711 plug, 5-pin

Compliance with the Standards

DIN 5032-7 class B / DIN EN 13032-1 appendix B / ISO CIE 19476

Characteristic Value - V(Λ) Matching (f1'), Typical

< 3 %

Temperature Dependence

< 0.1%, temperature compensated

Accuracy

± 2,5 % rdg ± 1 digit

Power Supply

Batteries

1,5V mignon, type AA

Automatic Battery Monitoring

Yes

Automatic Shutdown

Off, 10 s, 30 s, 1 min, 2 min, 5 min

Battery Service Life

Up to 16 h continuous operation with alkaline manganese battery

Power Supply

via USB

Operation

Display

FSTN graphic display, 128x64, monochrome, 50 mm x 25 mm

Background Illumination

Selectable mode and adjustable brightness

Controls

6 keys, fluorescent lettering

Measured Value Memory

8 GB

Interface

USB 2.0, micro-B socket

Software

Mavosoft

Miscellaneous

Operating Temperature

-10 °C to +50 °C

Dimensions

65 mm x 120 mm x 19 mm (Mavomaster)
33 mm x 115 mm x 27 mm (Mavoprobe)

Weight

210 g including battery

Note

Note: Please read description carefully. Do not base your order on the picture presented.
