Gossen M535G Mavolux 5032 B Illuminance Meter Kit, Class B
Condition:
Brand New
Brand NewChoose Luminance Range (cd/squre m)
$1,646.00 /Kit
Manufacturer warranty Description

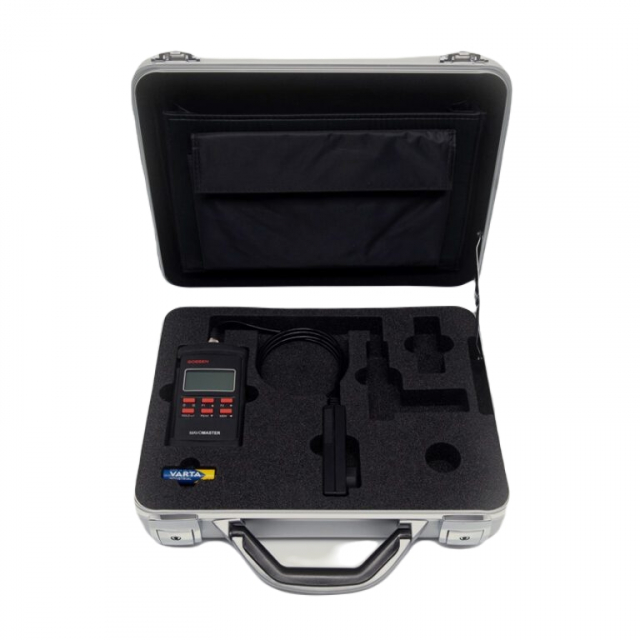

M535G Includes Only:
- Mavonaster
- Mavoprobe Lux 5032 B
- Rubber holster
- Aluminum case
- Mavosoft
- USB cable
- Battery
- Operating instructions
- Final test certificate
Features:
- For use in certification and inspection
- Relative and integral measurement
Technical details
Main features
- Interface USB 2.0, micro-B socket
- Weight 210 g including battery
- Dimensions 65 mm x 120 mm x 19 mm (Mavomaster) 33 mm x 115 mm x 27 mm (Mavoprobe)
- Power Supply via USB
- Accuracy ± 2.5 % rdg ± 1 digit
- Illuminance 0.001 lx - 199 990 lx 0.001 fc - 19 999 fc
- Luminance Range (cd/squre m) 0.01 - 1 999 900
- Software MAVOSOFT
- Display FSTN graphic display, 128x64, monochrome, 50 mm x 25 mm
- Operating Temperature -10 °C to +50 °C
- Controls 6 keys, fluorescent lettering
- Sampling Rate 2/s
- Batteries 1,5V mignon, type AA
- Measuring sensor Silicon photodiode with V(λ) filter
- Probe connector cable 1.5 m, plug-in, Binder series 711 plug, 5-pin
- Compliance with the Standards DIN 5032-7 class B / DIN EN 13032-1 appendix B / ISO CIE 19476
- Temperature dependence < 0.1%, temperature compensated
- Automatic battery monitoring Yes
- Measured value memory 8 GB
- Background Illumination Selectable mode and adjustable brightness
- Automatic Shutdown Off, 10 s, 30 s, 1 min, 2 min, 5 min
- Luminance 0.01 cd/m 2 - 1 999 900 cd/m 2 0.001 fL - 199 990 fL
- Probe with 1/4" Tripod Thread Yes
- Characteristic Value - V(Λ) Matching (f1'), Typical < 3 %
- Characteristic Value - Cos-Like Rating f2, Typical f2 < 2 %
- Battery Service Life Up to 16 h continuous operation with alkaline manganese battery
