Gigabyte, MS03-6L0, Intel 4th Gen UP Motherboard, 8 x DIMM DDR5, 5 PCIe Slots,1 x M.2, 1 Slim SAS w/ 4 x SATA 2 x 10G LAN

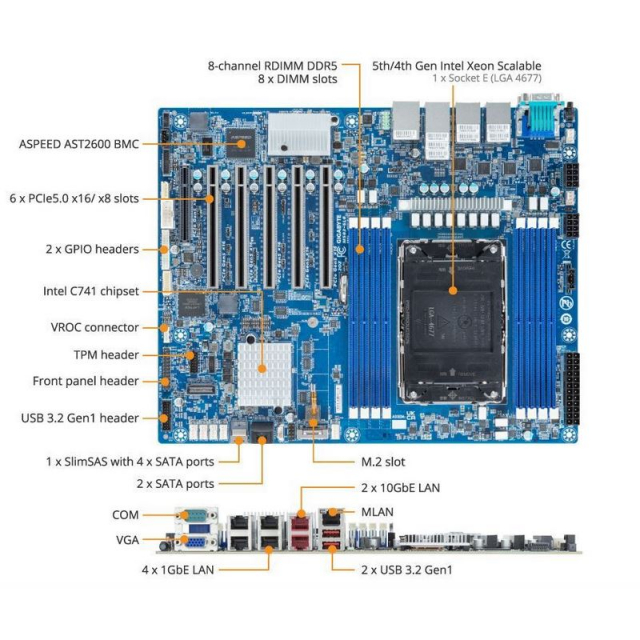

Features:
- Single 5th/4th Gen Intel® Xeon® Scalable Processors
- Single Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 8 x DIMMs
- Intel® C741 Chipset
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 4 x 1Gb/s LAN ports via Intel® I210-AT
- 1 x SlimSAS connector for 4 x SATA 6Gb/s
- 2 x SATA 6Gb/s ports
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 6 x PCIe Gen5 x16 and x8 expansion slots
Accelerating Artificial Intelligence and Leading Efficiency
Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors.
Adding a host of features to target a wide range of workloads, the families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel Xeon CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads. For this platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.
GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:
- Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
- Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
- Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.
