$189.00 /Each
Notification
This product will be drop-shipped directly from the manufacturer. We will provide you with the manufacturer's lead time once advised.
Manufacturer warranty Description
T+PRO Includes Only:
- Tester
- User manual
- Test lead wrap
- TP2 test probes

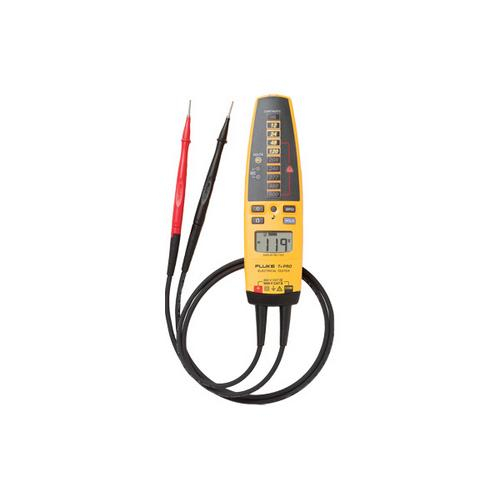

Safer than solenoid testers and fully compliant with NFPA 70E, the T+Pro helps electricians and technicians work safer by indicating the presence of voltage even when the batteries are dead due to its solid-state design. Additional functionality such as a GFCI trip, easy to read LCD screen, resistance measurement up to 9.99 kOhms and a flashlight make the T+Pro the first voltage tester that electricians reach for.
Features with all optional accessories:
- Solid-state tester design will detect voltage even when the batteries are dead
- CAT IV 600 V, CAT III 1000 V
- Complies with NFPA 70E
- CSA Approved
- GFCI trip for testing outlet GFCI circuits
- Rotary field indicator
- Built-in flashlight for measuring point illumination
- Convenient probe storage on the back
- Detect live voltage even when the batteries are dead
- 3 forms of AC/DC voltage indication: light, sound, and vibration for added user protection and convenience
- Backlit LCD display and hold function for easier viewing in hard-to-test areas
Technical details
Main features
- Weight 9.9 oz (0.28 kg)
- Relative Humidity 90%
- Storage -30°C to 60°C (-22°F to 140°F), 10,000 m (approx. 32,808.4 ft)
- Altitude Operating
- Safety ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV Compliance to NFPA 70E 1
- LEDs LEDs turn on between 90% and 100% of the indicated voltage on the LED, except for the 12 V LED which turns on between 50% and 100%
- LCD Resolution 0.1 V for voltages < 50 V, 1 V for voltages > 50 V
- Resistance +/-(5% rdg + 3 digits)
- Duty Cycle Indefinitely for voltages up to 240 V
- DC Voltage +/-(2% rdg + 2 digits)
- AC bandwidth 45 Hz to 66 Hz
- Size (H x W x L) 1.3 x 2.15 x 7.6 in (3.3 x 5.46 x 19.3 cm )
- Battery Type/Life AAA (2); 40 hours
- Shock, Vibration Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument
- Maximum Working Voltage 1000 V AC/DC
- Maximum Measurable Voltage 600 V AC/DC
- Voltage Hazard LED LEDs turn on at voltages > 30 V AC/DC +/-35%
- LED Voltage Indication Levels 12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V
- LCD Accuracy AC voltage
- GFCI Test Current 100 V - 150 V at 6 mA - 9 mA AC, 150 V - 240 V < 12 mA
- Standard Input Test Current < 5 mA
