Fluke FLUKE-NORMA 6003 Portable Power Analyzer Without Speed

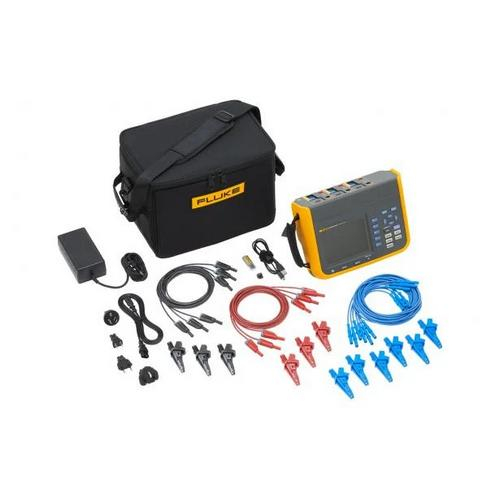

FLUKE-NORMA 6003 Includes Only:

• Portable power analyzer
• Power supply adapter
• Power cord
• Test leads, 1.5 m, (3) red, (3) black, (6) blue
• Alligator clips, (3) red, (3) black, (6) blue
• USB (mini B) cable
• RS-485/synchrony adapter (3.81mm, black, 3 pin)
• USB Flash Drive for PC SW and User Manual
• Soft case

Features:

• Measure voltage, current, active power, reactive power, apparent power, power factor and harmonics with associated values
• Get accurate, precise results with 0.1% measurement accuracy and a 500kHz bandwidth
• Take precision power measurements almost anywhere – highly portable, battery powered analyzer weighing only 3.5kg with up to 10 hours of battery life

Product overview: Fluke Norma 6000 Series Portable Power Analyzers

The Fluke Norma 6000 Series Portable Wideband Precision Power Analyzers give you more freedom than ever before to make high accuracy power measurements wherever you need to-whether in the lab, or in the field. Designed for portability the lightweight, battery powered Fluke 6000 Series eliminates the need to carry large, fragile, expensive analyzers into the field, allowing you to make measurements directly at the load in nearly any environment. By measuring directly at the load, you can discover how the equipment operates under real-world conditions, with real-world variables, not just at a test bench or in the lab.

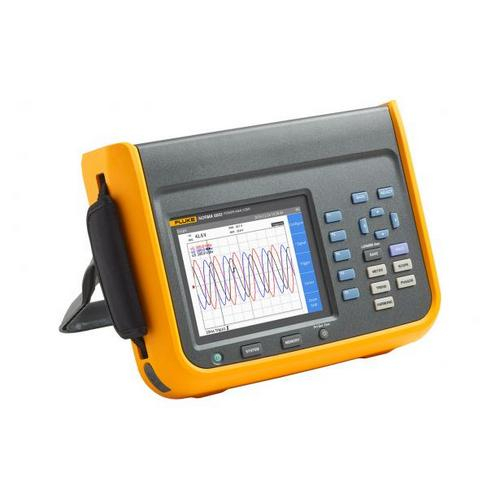

Fluke 6003 Power Analyzer

The Fluke 6003 includes three measurement channels which each consist of a voltage and current input making it ideal for three-phase power measurements.

With the addition of optional measurement accessories, you can even make measurements up to 1,500V DC and 2,000A AC+DC on conductors with a diameter of up to 52mm. The instrument's compact, battery-powered design combined with a wideband frequency response makes it easier than ever to make measurements on hard to access systems such as inverter drive systems, DC-AC and AC-DC power conversion systems and electric motors without removing them from service. Making these measurements in the field simplifies the troubleshooting and performance measurement processes without sacrificing uptime, giving you more accurate test results that will enable you to discover whether your loads are operating as effectively and efficiently as they should be.

• Highly portable and easily installed in tight spaces-only 9.6 cm thick.
• Operate continuously for up to 10 hours without an external power supply using the 5000mAh Li-ion Internal Battery.
• Measure safely-safety rated for CAT III 1000V, CAT IV 600V environments.
• Measure three phase power and DC output power at the same time with 3 or 4 channel models, with voltage and current inputs on each channel.
• Make mechanical torque and speed measurements using the included inputs and outputs of the Fluke 6003+ and 6004+.
• 0.1% accuracy, 500kHz bandwidth, 200ks/s sample rate so you can rely on the power conversion system measurements you take no matter what distortion may be present.
• USB and RS485 interface and open communication protocol for easy system integration and software platform flexibility.
• Combine two analyzers to enable simultaneous measurement of multiple circuits for even more troubleshooting capability-configurable to 6 or 8 channels using dual analyzer synchronization.
• View critical data in the field on the main display-Meter, Waveform, Harmonics up to the 100th, Vector and Trend.
• Ensure high common-mode rejection and allow flexible configurations according to measurement requirements using the electrically isolated channels.
• User adjustable measurement rate from 100ms to 1s with continuous logging via 32GB of onboard storage.
• Easy in-field set up using the integrated front panel or a remote PC connection (USB or RS485).
• Online measuring, data download and analysis with included PC software (Fluke Power Analyzer Software).
• Full remote control of the connected instrument using Fluke Power Analyzer Software and a local USB or long-distance RS485 connection.
