Fluke FLUKE-87V-MAX/E2 KIT Industrial True Rms Heavy Duty Multimeter
Brand NewNotification
This product will be drop-shipped directly from the manufacturer. We will provide you with the manufacturer's lead time once advised.
Manufacturer warranty Description

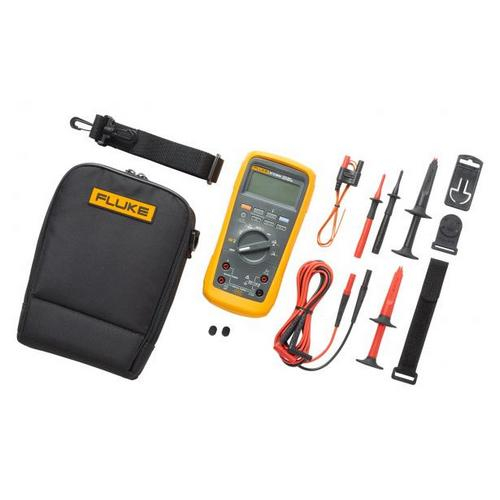

FLUKE-87V-MAX/E2 KIT Includes Only:

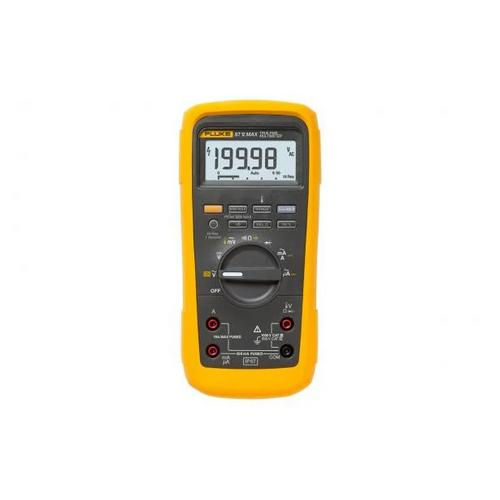

- Fluke 87V MAX True-RMS Digital Multimeter
- TL224 SureGrip™ Insulated Test Leads
- AC220 SureGrip™ Alligator Clips
- TL238 SureGrip™ Test Probes
- ToolPak™ Magnetic Meter Hanging Kit
- 80BK-A DMM Temperature Probe
- C35 Soft Carrying Case
- Three AA batteries (installed)
Features:
All functionality of the 87V MAX True-rms Digital Multimeter
- Withstands drops up to 4-meters (13 feet) with industrial strength casing and holster
- Waterproof, dustproof IP67 case for the most extreme work sites
Plus …
- Fully insulated 3 mm exposed metal test probes for electricians working in high energy environments
- TPAK magnetic hanging strap lets you attach the meter to any ferrous surface, such as cabinets and iron pipes.
Product overview: Fluke 87V MAX E2 Industrial Electrician Combo Kit
The 87V MAX E2 Industrial Electrician Combo Kit contains all the trusted Features: of the most popular DMM used today, the Fluke 87V, plus much more.
Withstands drops up to 4-meters (13 feet)
Fluke's most rugged digital multimeter. The 87V MAX is built with an industrial strength case and a removable holster. The holster doubles as a test probe holder for one-handed operation.

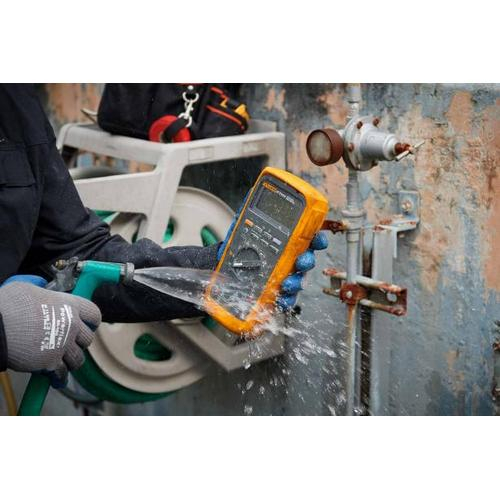

IP67 rated
Fully waterproof and dust proof, to work reliably in all the places that you need to work.
Withstands heat and cold
The meter has an extended operating temperature range of -40 °C (for up to 20 minutes) to +55 °C.
The right probes and clips for the toughest jobs
The 87V MAX E2 kit come with TL224 SureGrip™ Insulated Test Leads, AC220 SureGrip™ Alligator Clips and TL238 SureGrip™ Test Probes. Plus the ToolPak™ Magnetic Meter Hanging Kit, so your meter is always where you can see and still keep both hands free.
Other product highlights
- True-rms ac voltage and current for accurate measurements on non-linear signals
- Measure up to 1000 V ac and dc
- Measure up to 10 A (20 A for 30 seconds)
- Frequency to 200 kHz
- Built-in temperature function conveniently allows you to take temperature readings without having to carry a separate instrument using supplied thermocouple
- Min/Max/Average recording, plus 250 μs Peak min-max to capture variations automatically
- Unique function for accurate voltage and frequency measurements on variable frequency motor drives (VFDs) and other electrically noisy equipment
- Large display digits, 2-level bright white backlight and backlit keypad buttons for increased visibility
- Hi resolution 19,999 count display mode
- Long battery life (800 hours)
Technical details
- Size 6.0 x 10.1 x 21.5 cm (with holster)
- Power Three AA batteries. 800 hours typical, without backlight
- Weight 698.5 g (with holster)
- Frequency Range
- Accuracy ±(1% + 2), ±(0.005% + 1), ±(1.0% + 10), ±(0.05% + 1), ±(0.2% + 1), ±(0.2% per kHz + 0.1%), ±(0.7% + 4) true-rms, ±(1% + 1)
- Temperature Measurement Range –200.0 °C to 1090 °C –328.0 °F to 1994.0 °F excluding probe
- Display Digital
- Resolution 0.001 V
- Maximum Resolution 0.1%, 0.01 nF, 0.01 Hz, 0.01 nS, 0.1 mV, 0.1 µA, 0.01 µA, 0.1Ω
- IP Rating IEC 60529: IP67
- Backlight two level
- Resistance Range
- Duty Cycle Maximum duty cycle
- AC Current Range
- DC Voltage Range
- Capacitance Range
- DC Current Range
- Diode Test Range
- AC bandwidth 20 kHz with low pass filter; 3 dB at 1 kHz
- Amps Accuracy ±(0.2% + 2), ±(1.0% + 2) true-rms
- Conductance Maximum conductance
- 80 BK Temperature Probe –40.0 °C to 260 °C, ±2.2 °C or 2% whichever is greater –40.0 °F to 500 °F, ±4.0 °F or 2% whichever is greater
- Diagnostics and data storage Peak Min/Max
- Min/Max/Avg Yes
- Reading hold/Auto (Touch) Hold Yes
- Relative reference Yes
- Analog bar graph 32 segments, updates 40/second
- Low pass filter (VFD measurements) Yes
- Input AlertTM Yes
- AC Voltage/td> Range
