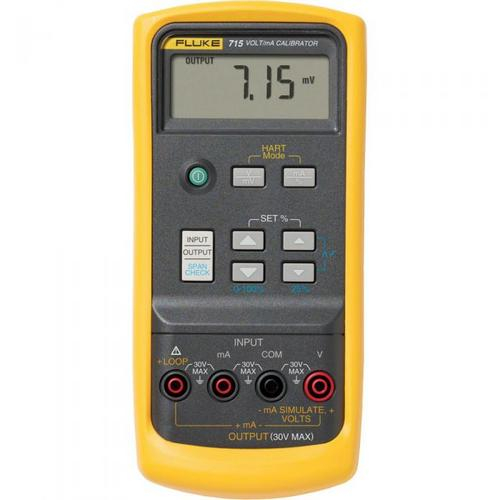

Fluke FLUKE-715 Volt/mA Loop Calibrator

FLUKE-715 Includes Only:

• Loop Calibrator
• Protective yellow holster with test lead storage
• Instructions sheet (14 languages)
• Single 9V alkaline battery
• Test leads and alligator clips
• NIST- traceable calibration report and data

The Fluke 715 Volt mA Calibrator delivers outstanding performance, durability, and reliability in a compact, lightweight tool. Offered in the rugged Fluke 80 Series DMM package, the calibrator measures loop current as well as voltage output. It sources voltage to 200 mV or 20 V, measures loop current (0-20 mA, 4-20 mA) signals with 0 .01 % accuracy and 1 µA resolution, and measures voltage output process signals from PLCs and transmitters. It can source or simulate 4-20 mA loop current and provides a 24 V loop supply with simultaneous current measurement. The 715 is also extremely easy to use with a simple push-button interface similar to the multifunction Fluke 750 Series Documenting Process Calibrators. It features the rugged construction that Fluke tools are known for and is EMI tolerant and dust and splash resistant. It also features a removable battery door for quick battery changes.

Features with all optional accessories:

• Compact, lightweight mA calibrator for measuring loop current (0-20 mA, 4-20 mA) signals
• Delivers very high accuracy-0.01%-and 1 mA resolution
• Measures voltage output process signals from PLCs and transmitters
• Sources or simulates 24 mA loop current
• Sources voltage to 100 mV or 10V
• Provides typical 18-hour battery life
• Provides step and linear ramp output function
• Features configurable zero and span settings
• Provides 24V loop supply with simultaneous current measurement
• Features enhanced voltage and current measure and source accuracy
• Is EMI tolerant, dust/splash resistant and features a removable battery door for quick battery changes
• Includes a 250-ohm HART resistor with loop power
• Comes with a protective yellow holster with test lead storage
• Is compatible with ToolPak magnetic meter hanging system
