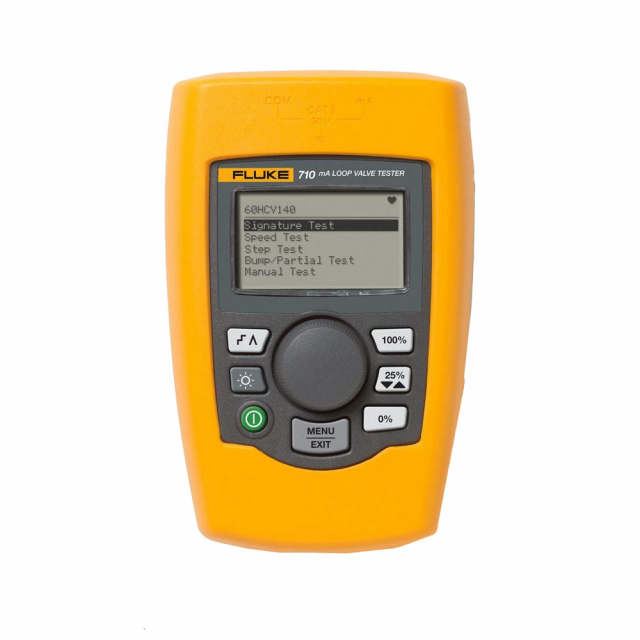

Fluke FLUKE-710 mA Loop Valve Tester, Yellow

FLUKE-710 Includes Only:

• Tester
• Stackable test lead set
• Extended tooth alligator clip set
• TP220 test probes
• AC280 SureGrip hook clips
• Lemo to USB upload/download cable
• ValveTrack software (free download)
• Softcase
• (6) AAA batteries (installed)
• 709/709H/710 Product manual CD-ROM
• 709/709H/710 Quick reference guide
• 709/709H/710 Safety information

The Fluke 710 Valve Testing Loop Calibrator is designed to enable users to perform quick, easy tests on HART smart control valves. Featuring built-in test procedures and an intuitive user interface, the 710 allows users to quickly and easily perform valve tests, while the valve test quick-check results provide at-a-glance diagnostics help you make maintenance decisions faster than ever. The valve health quick-check results let you know whether your valve is in good, marginal or in bad operating condition so you can quickly decide whether additional maintenance is necessary. With the 710 Valve Testing Loop Calibrator's built-in HART communication function, users can source a 4-20 mA signal to cause the smart control valve to move, while simultaneously interpreting the valve's HART feedback signal to determine whether the valve is moving to the expected position. In addition to positional information, the measured pressure delivered from the valve's internal I/P (which moves the valve) can be determined through the HART communication protocol. The 710 has built-in test procedures that automatically increase and change the mA signal while monitoring the HART position and pressure feedback from the control valve, giving you a better overall picture of valve health at the simple push of a button.

Features with all optional accessories:

• Key valve testing functions include pre-configured valve signature test, speed test, step test, manual test, and bump/partial stroke test
• Key mA loop calibrator functions include mA source, mA simulate, mA read, mA read/loop power, and volts read
• ValveTrack™ Software enables upload to a PC for further in-depth analysis of valve measurements that are logged and recorded to memory
• Valve test procedures that deliver Good, Marginal or Bad assessment of a control valve
• Generic HART communication
• Best-in-class mA accuracy at 0.01 % measurement or source value
• Compact rugged design
• Intuitive user interface with Quick-Set knob for fast setup, easy to use
• 24 V DC loop power with mA measure mode (-25 % to 125 %)
• Resolution of 1 μA on mA ranges and 1 mV on voltages ranges
• Built-in selectable 250 Ω resistor for HART communications
• Simple two-wire connection for all measurements
• Auto shutdown to conserve battery life
• Variable step and ramp time in seconds
